Shop DAYTON

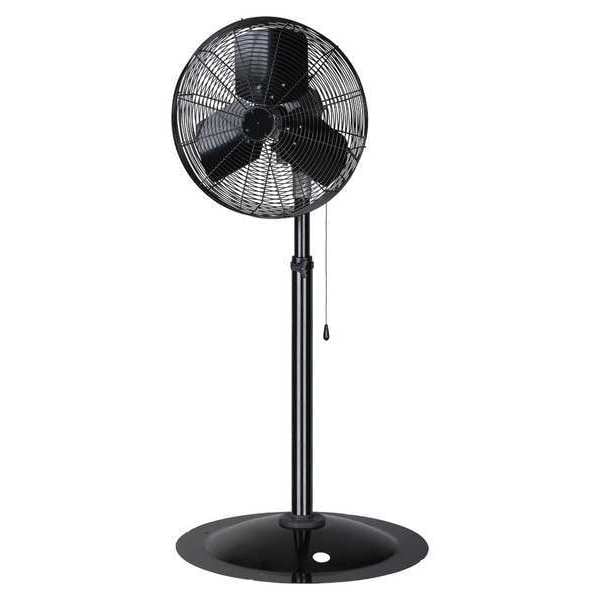

Light Duty Industrial Fan, Pedestal Mount, 20 in Blade Dia, 120V, 5,100/6,200 cfm, Oscillating

  • Mfr # 13V399

  • Zoro # G4028622

product price:  $264.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/7 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13V399
Zoro #
G4028622
UPC #
190735121436
Country of Origin
China

Dimensions

Blade Diameter
20 in
Height
74 in
Width
27 5/16 in
Shaft Dia.
1/2 in
Max. Depth
27-1/4"
Base Dia.
27 3/16 in
Depth
24 in
Height Adjustment
Adjustable
Fan Cord Length
9 ft
Overall Height - Minimum
60 in

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/7 hp
Air Flow
5,100/6,200 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
68 dBA
Item
Freestanding Fan
Air Velocity @ 20 Ft.
585/425 fpm
Wire Guard Finish
Powder Coated
Fan Mounting Location
Pedestal
NEMA Plug Configuration
5-15P
Fan Style
Standard
Number of Blades
3
Environmental Applications
Industrial
Full Load Amps
1.9
Guard Material
Steel
Motor Enclosure
Totally Enclosed Air-Over
Hz
60 Hz
CFM/Watt
28.4/32.3
Fan Accessory Style
Standard
CFM Low
5100
Thermal Protection
Automatic Reset
Max. Ambient Temp.
104 Degrees F
Assembled
No
Air Velocity @ 60 Ft.
135/41 fpm
Number of Conductors
3
Air Velocity @ 40 Ft.
174/173 fpm
Application
Spot Cooling and People Cooling
Motor Type
Permanent Split Capacitor
Motor Insulation
B
Motor RPM
1100/925
Requires
Assembly
Standards
cULus
Watts
220/180 W
Bearing Type
Ball
Includes
Column, Mounting Hardware, Pedestal
Air Velocity @ 10 Ft.
571/522 fpm
CFM High
6200
Housing Material
Steel
Mobile/Stationary
Stationary
Color
Black
Amps
2.0/1.57 A
Assembly Required
Yes
Wheeled Base
Stationary
Fan Housing Material
Steel
RPM
1,016 RPM, 1,119 RPM
Material
Steel
Motor hp
1/5 hp
NEMA plug Configuration
5-15p
Removable Base
Permanently Lubricated
High-Visibility
No
Sound Level - Minimum
65 dBA
Airflow
5,100 cfm, 6,200 cfm
Corrosion-Resistant
Yes
Housing Finish
Painted
Base Type
Pedestal
For Location
Manufacturing Plant
Guard Color
Black
Head Tilt Adjustment
90 Degrees
Fan Shape
Basket
Environment Rating
Dry
Bearing Protection
Sealed

Description

Freestanding Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 20 in, Oscillating, Fan Cord Length 9 ft, 220/180 W Watts, 1,016 RPM, 1,119 RPM RPM, Number of Blades 3, 2.0/1.57 A Amps, Height 74 in, Width 27 5/16 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Black, Assembly, cULus, Column, Mounting Hardware, Pedestal
