  11. HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

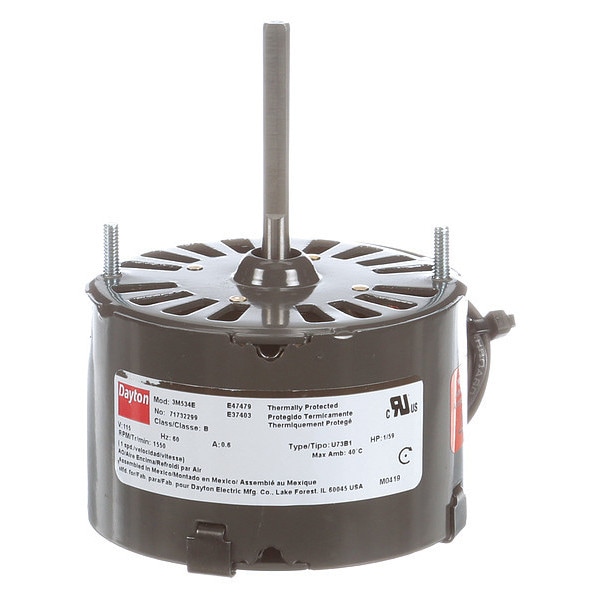

Dayton HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 71732299M - main

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71732299M

  • Zoro # G2844362

product price: $95.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
71732299M
Zoro #
G2844362
UPC #
00190735291870
Country of Origin
Mexico

Dimensions

Cord Length
12 in
Length Less Shaft
2 1/8 in
Shaft Length
2 1/4 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,501-1,600
Motor Thermal Protection
Auto
Motor Design
Shaded Pole
Motor Service Factor
1
Motor Shaft Rotation
CWSE
Hz
60 Hz
Phase
Single
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Item
HVAC Motor
Number of Shafts
1
Motor Bearings
Sleeve
Duty
Continuous
Motor Mounting Type
Ring/Stud
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
0.7 A
Motor Sub Application
Direct Drive Fan/Blower
Motor Application
HVAC/R
Stud/Base Mtg. Pattern
2-7/8 in
Mounting Stud Location
2/Shaft End
Mounting Pattern
2-7/8
Ins. Class
B
Frame
3.3
Capacitor Required
No
Usable @ 208V
No
Usable @ 200V
No
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Type
OEM Replacement
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.7 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
