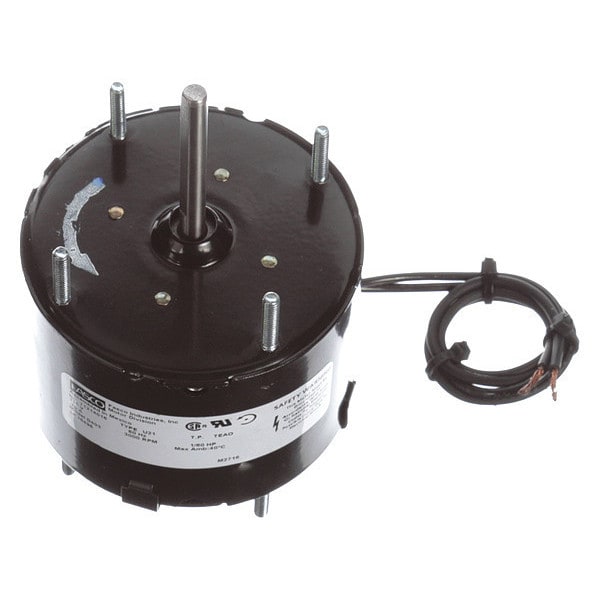

Fasco HVAC Motor, 1/60 HP, 3000 rpm, 115V, 3.3 D403 - main

HVAC Motor, 1/60 HP, 3000 rpm, 115V, 3.3

  • Mfr # D403

  • Zoro # G6117657

product price:  $91.49
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/60
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D403
Zoro #
G6117657
UPC #
663001427704
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 7/8 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Overall Length
4 15/16 in
Lead Length
11 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/60
RPM Range
1,801-3,000
Item
Fan and Blower Motor
Application
Fan/Blower
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Design
Shaded Pole
Frame
3.3
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Number of Shafts
1
Mounting Pattern
2-7/8 x 2-7/8
Phase
Single
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Motor Shaft Rotation
CCWSE
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Mounting Type
Ring/Stud
Full Load Amps
0.75 A
Ins. Class
B
No. of Speeds
1
Mounting Stud Location
4/Both Ends
Motor Bearings
Sleeve
Capacitor Required
Capacitor Not Required
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Weight
2 lb
Mounting Holes
(8) #8-32
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Frame Material
Steel
Mounting
Stud
Frame Material
Steel
Bearing Type
Sleeve
Frequency
60 Hz
Full Load Current @ 60 Hz
0.75 A
Wattage
10 W
Sub Application
General Purpose
Shaft Design
Flat
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/60 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.75 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
