  11. HVAC Motor, 1/20 HP, 1550 rpm, 115V

This item is Discontinued.

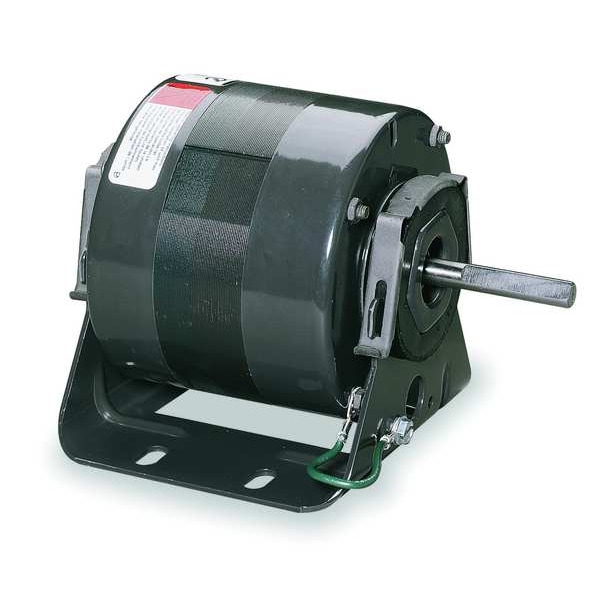

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 115V 3M581D

HVAC Motor, 1/20 HP, 1550 rpm, 115V (Discontinued)

  • Mfr # 3M581D
  • Zoro # G0802636
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3M581D
Zoro #
G0802636
UPC #
190735292235
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Body Dia.
4 7/16 in
Length Less Shaft
5 in
Shaft Length
2 in

Details

Motor Sub Application
Direct Drive Fan/Blower
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWSE
Motor Mounting Type
Cradle Base
Nameplate RPM
1,550
Item
HVAC Motor
Motor Thermal Protection
Auto
Frame
4.4
Full Load Amps
1.9 A
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA (701887), UL (E37403)
Motor Design
Shaded Pole
Hz
60 Hz
Motor Service Factor
1
Motor Application
HVAC/R
Duty
Continuous
Stud/Base Mtg. Pattern
1-11/16 in x 3-15/16 in
Ins. Class
B
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty Cycle
Continuous
Usable @ 208V
No
Mounting Stud Pattern
1 11/16 in x 3 15/16 in
Usable @ 200V
No
Number of Shafts
1
Motor Mounting Position
Horizontal
Capacitor Required
No
Number of Speeds
1
Mounting
Cradle Base

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.9 A, 4.4 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Number of Shafts 1
