Dayton

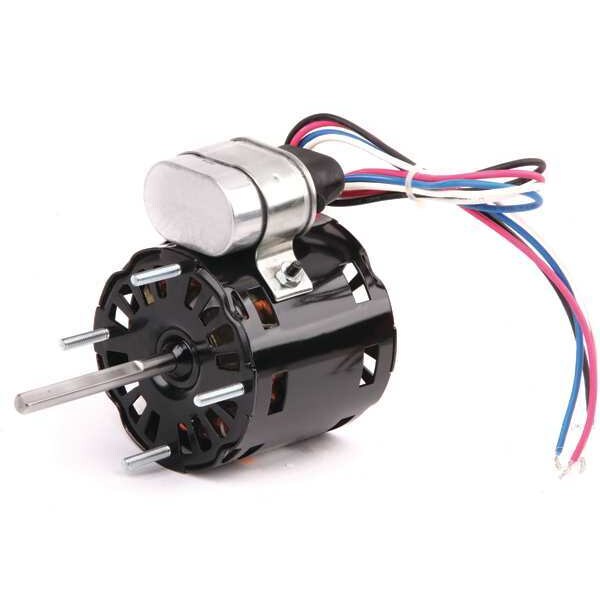

HVAC Motor, PSC, 1/25 HP, 115V, 3.3in. dia. (Discontinued)
Mfr # 36VG31
Zoro # G0705251
This Product is Discontinued
Key Features
- Voltage 115V AC
- Nameplate RPM 1,550
- Motor Enclosure Design Open Air-Over
- Number of Speeds 3
- HP 1/25
Customers Also Purchased
- Brand Dayton
-
MFR #
36VG31
-
Zoro #
G0705251
- UPC # 190735276273
- Country of Origin China
- Category 3.3 Inch Diameter Motors
Dimensions
Shaft Length | 3 in |
Body Dia. | 3 5/16 in |
Cord Length | 16 in |
Length Less Shaft | 3 1/16 in |
Shaft Dia. | 5/16 in |
Details
Voltage | 115V AC |
Nameplate RPM | 1,550 |
Motor Enclosure Design | Open Air-Over |
Number of Speeds | 3 |
HP | 1/25 |
RPM Range | 1,501-1,600 |
Full Load Amps | 0.65 A |
Ins. Class | B |
Motor Sub Application | Direct Drive Fan/Blower |
Includes | Capacitor |
Hz | 60 Hz |
Motor Design | Permanent Split Capacitor |
Number of Shafts | 1 |
Application | HVAC/R |
Item | HVAC Motor |
Max. Ambient Temp. | 40 Degrees C |
Mounting Stud Location | 4/Opposite Lead End |
No. of Speeds | 3 |
Motor Thermal Protection | Auto |
Standards | CSA Certified (244617), UL Recognized (E37403) |
Motor Mounting Type | Stud |
Motor Shaft Design | Flat |
Motor Bearings | Sleeve |
Motor Service Factor | 1 |
Motor Shaft Rotation | CCWSE |
Stud/Base Mtg. Pattern | 2-7/8 in x 2-7/8 in |
Duty | Continuous |
Frame | 3.3 |
Mounting Pattern | 2-7/8 x 2-7/8 |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Phase | Single |
Motor Application | HVAC/R |
Capacitor Required | Included |
Mounting Stud Pattern | 2 7/8 x 2 7/8 |
Duty Cycle | Continuous |
Mounting | Stud |
Description
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/25 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 0.65 A, 3.3 Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Number of Shafts 1
- This item has been restricted from sale in the following states: CA
