  13. Illuminated Push Button, 22 mm, 1NO/1NC, Green
Shop All Push Button Switches
Dayton

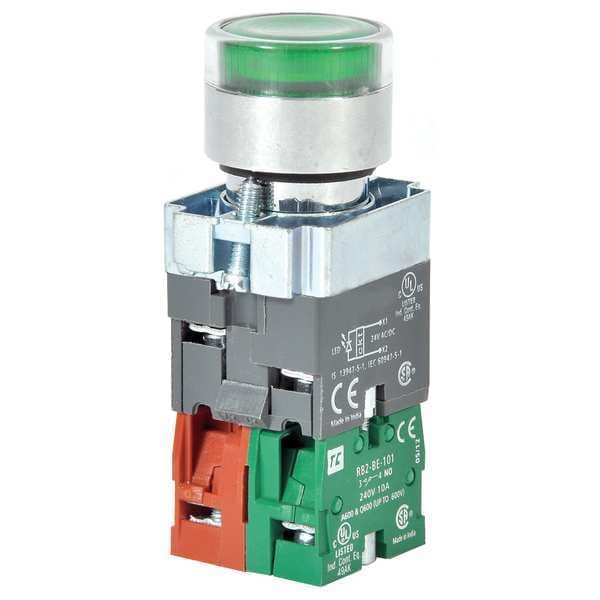

Illuminated Push Button, 22 mm, 1NO/1NC, Green

product price: $20.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Rating 1.2 A @ 600V AC, 3 A @ 240V AC, 6 A @ 120V AC
  • Size 22 mm
  • Action Momentary
  • NEMA Rating 1, 12, 13, 2, 3, 4, 4X
  • Lamp Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Size 22 mm
Panel Cutout Diameter 22 mm

Details

Item Illuminated Push Button
Contact Rating 1.2 A @ 600V AC, 3 A @ 240V AC, 6 A @ 120V AC
Action Momentary
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
Lamp Voltage 24V AC/DC
Lamp Type LED
Type of Operator Round Guarded Button
Head Material Metal
Contact Form 1NO/1NC
Number of Operators 1
Bezel Chrome
Color Green
Lamp Module Voltage 24V AC/DC
Bezel Material Chrome
Standards CE, CSA, IEC, UL Listed
Terminal Connection Pressure Plate
Basic Material Metal
Contact Type 1NO / 1NC
Lamp Module Type Full Voltage
IP Rating IP65
Voltage 24V AC/DC
NEMA Contact Rating Designation A600/Q600
AC Contact Rating 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series Dayton
Product Type Push Button Operators
Operator Material Metal
Head Color Green
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4, 4X
Push Button Style Extended
Lamp Voltage - Maximum 24 V AC/DC
Operator Illumination Illuminated

Description

Illuminated Push Button, 22 mm, Momentary Action, Round Guarded Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome, Color Green, Contact Rating 1.2 A @ 600V AC, 3 A @ 240V AC, 6 A @ 120V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP65, Standards CE, CSA, IEC, UL Listed, Terminal Connection Pressure Plate
