Shop DAYTON

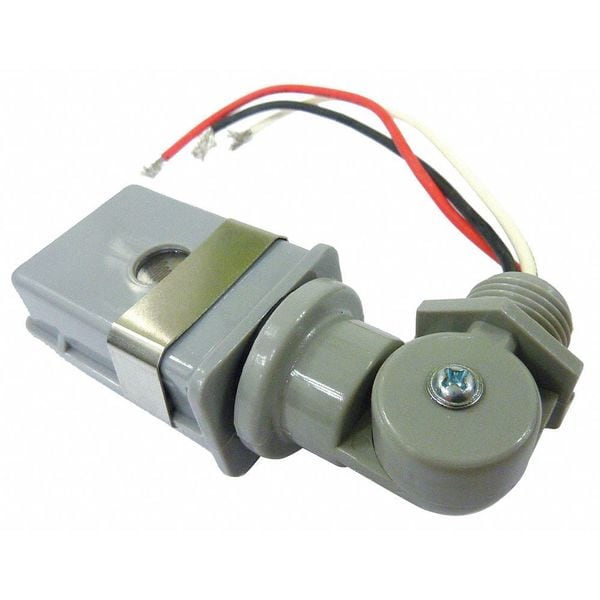

Incandescent Photocontrol, 1,800 W, Gray

  • Mfr # 26WA81
  • Zoro # G9087242
product price:
$
13.15
/ea

Key Features

Compatible Lighting
Incandescent
Incandescent Current - Maximum
9 A
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26WA81
Zoro #
G9087242
UPC #
190735210833
Country of Origin
China

Dimensions

Length
2 7/8 in
Width
1 1/3 in
Manufacturers Warranty Length
5 yr
Depth
1 1/3 in
Overall Height
2.88 in
Overall Depth
1.33 in
Stem Diameter
1/2 in
Overall Width
1.33 in

Details

Item
Photocontrol
Compatible Lighting
Incandescent
Incandescent Current - Maximum
9 A
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Housing Material
Polycarbonate
Standards
UL Listed
Contact Form
SPST
Setting
Dusk to Dawn
Enclosure Type
Raintight
Description/Special Features
Built in Delay
Includes
Lock Nut, Washer Gasket
Operating Temperature - Maximum
158 Degrees F
Off Illumination - Maximum
60 fc
On Illumination - Maximum
20 fc
Ballast Current - Maximum
4.6 A
Mounting Style
1/2 in Conduit, Flush
AC Operating Voltage
208V AC to 277V AC
On Illumination - Minimum
10 fc
Features
Built-In Delay
Operating Temperature - Minimum
-40 Degrees F
Wattage - Maximum
1,800 W
Off Illumination - Minimum
30 fc

Description

Photocontrol, Mounting 1/2 in Conduit, Flush, Voltage 208 to 277V AC, Max. Wattage 1,800, Max. Incandescent Amps 9 A, Max. Ballast Amps 4.6 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 7/8 in, Width 1 1/3 in, Depth 1 1/3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL Listed, Includes Lock Nut, Washer Gasket
