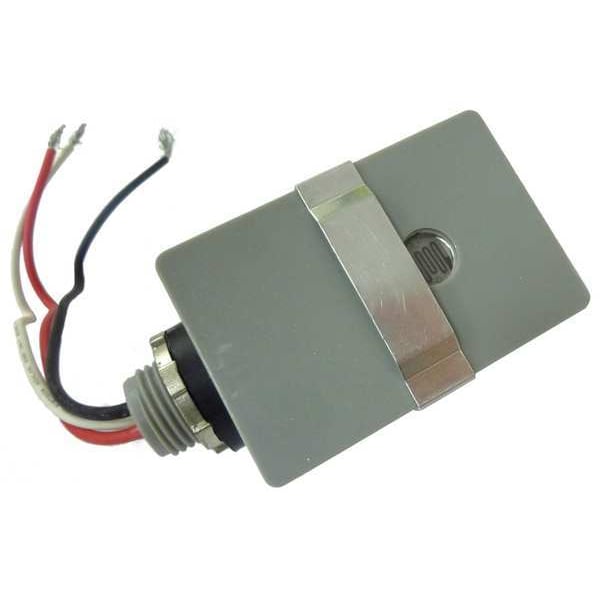

Dayton Incandescent Photocontrol, 2,000 W, Gray 26WA93 - main

Incandescent Photocontrol, 2,000 W, Gray

  • Mfr # 26WA93

  • Zoro # G8559512

product price:  $13.29
/ea

Key Features

Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
16.7 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
26WA93
Zoro #
G8559512
UPC #
190735210956
Country of Origin
China

Dimensions

Width
2 in
Depth
1 1/2 in
Manufacturers Warranty Length
5 yr
Length
3 in
Overall Height
3 in
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
16.7 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Contact Form
SPST
Standards
UL Listed
Enclosure Type
Raintight
Description/Special Features
Built in Delay
Includes
Lock Nut, Washer Gasket
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Setting
Dusk to Dawn
Features
Built-In Delay
On Illumination - Minimum
10 fc
Operating Temperature - Minimum
-40 Degrees F
On Illumination - Maximum
20 fc
Off Illumination - Minimum
30 fc
Operating Temperature - Maximum
158 Degrees F
Mounting Style
1/2 in Conduit, Stem
Off Illumination - Maximum
60 fc

Description

Photocontrol, Mounting 1/2 in Male Pipe Thread, Voltage 120V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 16.7 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 3 in, Width 2 in, Depth 1 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL Listed, Includes Lock Nut, Washer Gasket
