Shop All Chain Links
Dayton

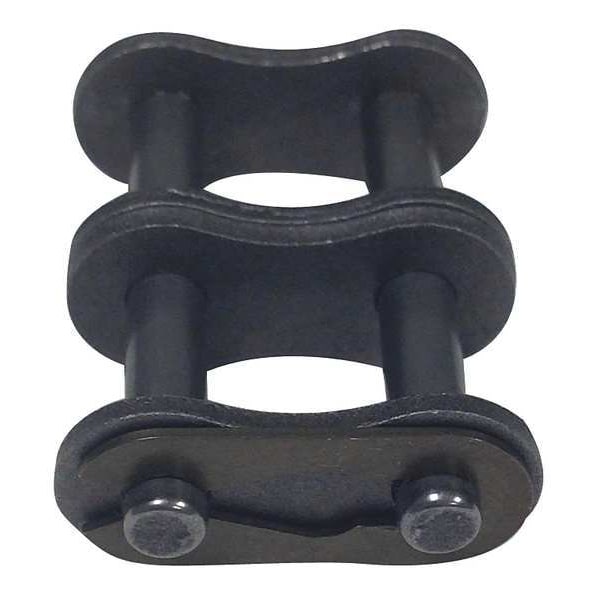

Ind Link Double Stand Connect Pk5

product price: $5.69
/pk 5, $1.14/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type Standard Riveted
  • Industry Chain Size 35-2
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 3/8 in
  • Number of Strands 2
See all product information

Product Information

  • Brand Dayton
  • MFR # 2YEE8
  • Zoro # G1558907
  • UPC #
    190735238158
  • Country of Origin Multiple
  • Category Chain Links

Dimensions

Industry Chain Size 35-2
Chain Link Overall Width 1.04 in
Chain Roller Dia. 0.2 in
Pin Length 1.04 in
ANSI Chain Size 35-2
Bushing Dia. (In.) 0.200
Hole Dia. (In.) 0.140
Width Between Roller Link Plates (In.) 0.188
Chain Size - Sprockets 35-2
Inside Pin Dia. 0.141 in
Overall Width (In.) 0.898
Roller Link Plate Height (In.) 0.340
Roller Link Plate Height 0.356 in
Width Between Roller Link Plates 0.188 in
Bushing Dia. 0.2 in
Roller Dia. (In.) 0.200
Outside Pin Dia. (In.) 0.141
Outside Pin Dia. 0.141 in
Pin Length (In.) 0.898
Hole Dia. 0.143 in
Plate Height 23/64 in
Pin Outside Diameter 9/64 in
Chain Overall Width 1 3/64 in
Inside Width 3/16 in
Roller Diameter 3/16 in
Pin Hole Diameter 9/64 in

Details

Roller Chain Link Item Connecting Link
Roller Chain Link Type Standard Riveted
Chain Link Material Carbon Steel
Industry Chain Pitch 3/8 in
Number of Strands 2
Type Double Strand Connecting
Rivet End to Center Line (In.) 0.429
Tensile Strength 3,520 lbf
Pitch 3/8 in
Temp. Range 10 Degrees to 150 Degrees F
Pin Link Plate Thickness (In.) 0.050
Material Steel
Breaking Strength (Lb.) 4850
Breaking Strength 3,520 lb
Connecting End to Center Line 0.469 in
Max. Allowable Load (Lb.) 805
Pin Link Plate Thickness 0.05 in
Tensile Strength (Lb.) 4850
Max. Allowable Load 805 lb
Item Connecting Link
Connecting End to Center Line (In.) 0.469
Rivet End to Center Line 0.429 in
Industrial Chain Pitch 3/8"
Maximum Operating Temperature 150 Degrees F
Chain Construction Riveted Pin
Minimum Operating Temperature 10 Degrees F
Plate Thickness 3/64 in
Pin Contruction Riveted Pin
Working Load Limit 805 lb
Heavy Series No
Chain Number 35
Link Type Connecting Link

Description

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 3/64 in, Chain Number 35, Roller Diameter 3/16 in, Pitch 3/8 in, Link Type Connecting, Number of Strands 2, Heavy Series No, Inside Width 3/16 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 9/64 in, Pin Outside Diameter 9/64 in, Plate Height 23/64 in, Plate Thickness 3/64 in, Tensile Strength 3,520 lbf
