This item is Discontinued.

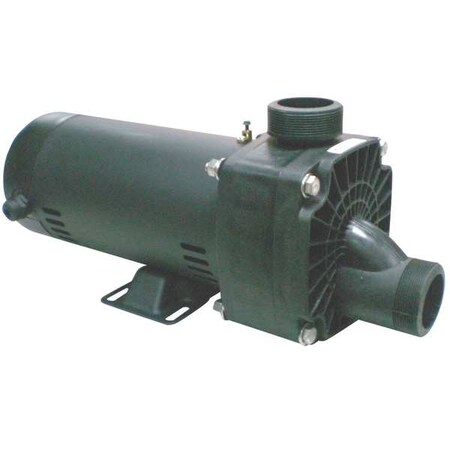

Dayton Jet Tub Pump, 1/2HP, 3450,115/230V 5PXF7

Jet Tub Pump, 1/2HP, 3450,115/230V (Discontinued)

  • Mfr # 5PXF7
  • Zoro # G2458811
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5PXF7
Zoro #
G2458811
UPC #
190735350058
Country of Origin
China

Dimensions

Length
17 5/16 in
Width
6 17/32 in
Height
9 1/2 in
Overall Length
17.31 in
Overall Width
6.53 in
Overall Height
9.5 in
Intake and Discharge Size
1 1/2 in , 1 1/2 in
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in

Details

Item
Hot Tub Pump
HP
1/2 hp
Phase
Single
Voltage
115/230
Amps
8.1/4.5
Max. Head
34
Motor Type
Capacitor-Start
Outlet
1 1/2 in
Inlet
1 1/2 in
GPM of Water @ 10 Ft. of Head
63 gpm
GPM of Water @ 20 Ft. of Head
49 gpm
GPM of Water @ 30 Ft. of Head
29 gpm
RPM
3450
Standards
CSA-US (247091)
Product Type
Self-Draining Jetted Tub Pump
Discharge Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
63 gpm
Duty Cycle
Continuous
Maximum Feet of Head
34 ft
Intake Type
NPT
Maximum RPM
3,450 RPM
Priming
Self-Priming
Motor Enclosure
Open Dripproof
Suction Lift (Maximum)
1 ft
Flow Rate @ 30 ft of Head (Maximum)
29 gpm
Pump Housing Material
Plastic
Flow Rate @ 20 ft of Head (Maximum)
49 gpm
Horsepower
1/2 hp
Nameplate Voltage
115/230V AC

Description

Hot Tub Pump, Phase Single, Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Maximum Feet of Head 34 ft, Flow Rate @ 20 ft of Head (Maximum) 49 gpm, Flow Rate @ 30 ft of Head (Maximum) 29 gpm, Suction Lift (Maximum) 1 ft, Intake Type NPT, Discharge Type NPT, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/2 in, Priming Self-Priming, Pump Housing Material Plastic, Duty Cycle Continuous

Restrictions

This item has been restricted from sale in the following states: CA
