  11. Lathe, 120V AC Volts, 2 hp HP, 60 Hz, Single Phase 36 in Distance Between Centers

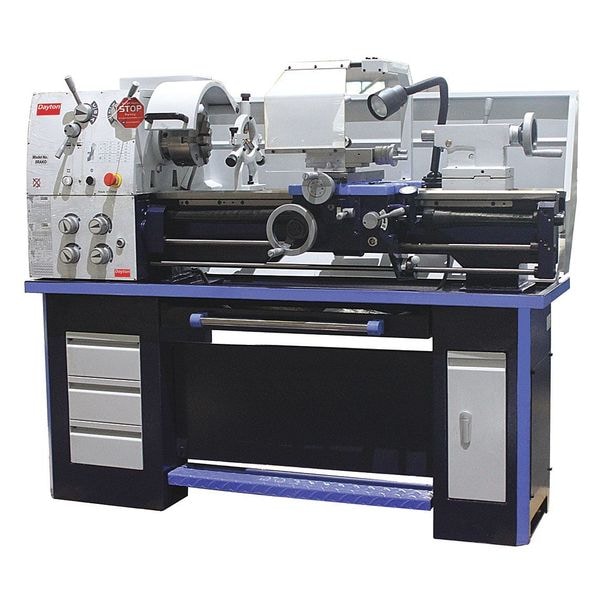

Dayton Lathe, 120V AC Volts, 2 hp HP, 60 Hz, Single Phase 36 in Distance Between Centers 53UH10 - main

Lathe, 120V AC Volts, 2 hp HP, 60 Hz, Single Phase 36 in Distance Between Centers

  • Mfr # 53UH10

  • Zoro # G9188868

product price: $13,526.99
/ea
Item requires special delivery charges. A $295.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
2
Phase
Single
Voltage
120V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UH10
Zoro #
G9188868
UPC #
-
Country of Origin
China

Dimensions

Gap Length (In.)
9
Overall Height
160 mm
Bed Width (In.)
7-3/8
Overall Width
66 in
Overall Length
66 in
Bed Width
7 3/8 in
Gap Length
9 in
Overall Depth
30 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
2
Phase
Single
Voltage
120V AC
Frequency
60 Hz
Swing Over Bed (In.)
12
Distance Between Centers
36 in
Horsepower
2 hp
Spindle Speed (RPM)
65 to 1800
Carriage Travel (In.)
31
Distance Between Centers (In.)
36
Spindle Bore (In.)
1-1/2
Number of Spindle Speeds
18
Longitudinal Feed Rates
0.002 to 0.055
Thread Range (In.)
4 to 56
Swing In Gap (In.)
16-3/4
Number of Threads (In.)
34
Hz
60
Features
Charlock Spindle Seat, Hardened and Ground Bed Guide Ways, Stand
Tailstock Taper
MT3
Compound Travel (In.)
3-11/32
Includes
(3) 160 mm Jaw Chucks, (4) 200 mm Jaw Chucks, 3MT Live Center, 4-Way Tool Post, Chuck and Tool Post Safety Guard, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
Cross Travel (In.)
6-3/8
Swing Over Cross Slide (In.)
6-1/2
Cross Feed Rates
0.0005 to 0.015
Thread Range (mm)
0.4 to 7
Spindle Taper
MT-3
Tailstock Travel (In.)
3-15/16
Number of Threads (mm)
26
Number of Inch Threads
34
Swing Over Bed
12 in
Max. Spindle Speed
1,800 RPM
Min. Metric Thread
0.4 mm
Max. Metric Thread
7 mm
Swing Over Cross Slide
6 1/2 in
Max. Cross Feed
0.0150 in
Min. Spindle Speed
65 RPM
Max. Threads per Inch
56
Min. Cross Feed
0.0005 in
Spindle Bore
1 1/2 in
Number of Metric Threads
26
Application
Metal Turning
Min. Threads per Inch
4
Swing In Gap
16 3/4 in
Includes Taper Attachment
No Taper Attachment
Spindle Nose Taper
MT5
Includes Stand
Stand Included
Spindle Speed - Minimum
65 RPM
Swing Over Gap
7 1/2 in
Threads per Inch - Maximum
56
Cross Feed - Minimum
0.0005 in/rev
Lathe Head Drive
Gear Drive
Metric Thread - Maximum
7 mm
Threads per Inch - Minimum
4
Includes Collet Closer
No Collet Closer
Includes Digital Readout
No Digital Readout
Cross Feed - Maximum
0.015 in/rev
Spindle Speed - Maximum
1,800 RPM
Metric Thread - Minimum
0.4 mm

Description

Lathe, Distance Between Centers 36 in, Voltage 120V AC, Horsepower 2 hp, Min. Spindle Speed 65 RPM, Application Metal Turning, Overall Height 160 mm, Overall Length 66 in, Overall Width 66 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3
