  11. Lathe, 230V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

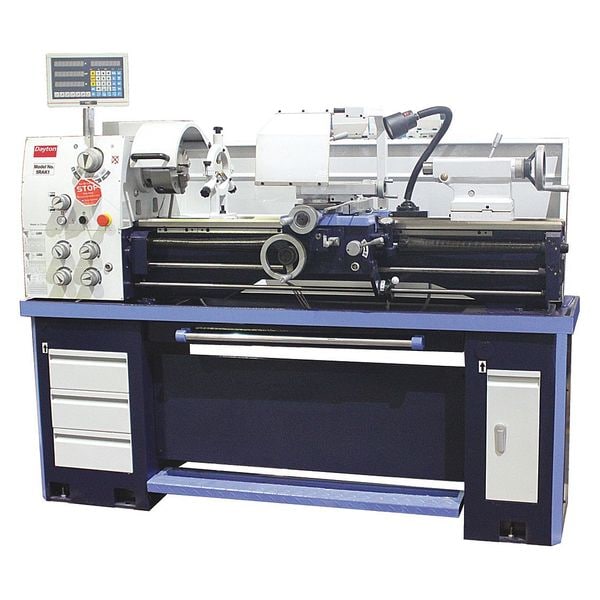

Dayton Lathe, 230V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers 467K87 - main

Lathe, 230V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

  • Mfr # 467K87

  • Zoro # G7136241

product price: $13,876.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
230V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
467K87
Zoro #
G7136241
UPC #
-
Country of Origin
China

Dimensions

Overall Height
58 in
Gap Length (In.)
8
Overall Length
76 in
Overall Width
30 in
Bed Width (In.)
7-3/8
Bed Width
7 3/8 in
Gap Length
8 in
Overall Depth
76 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
230V AC
Frequency
60 Hz
Swing Over Bed (In.)
13
Distance Between Centers
40 in
Horsepower
2 hp
Includes
(2) 3MT Dead Centers, (4) Jaw Chucks, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
Compound Travel (In.)
3-3/4
Swing In Gap (In.)
18-3/4
Cross Travel (In.)
7
Longitudinal Feed Rates
0.003 to 0.023
Thread Range (In.)
4 to 56
Hz
60
Number of Threads (In.)
34
Features
Emergency Stop
Spindle Bore (In.)
2
Spindle Speed (RPM)
70 to 2000
Cross Feed Rates
0.0005 to 0.015
Spindle Taper
MT-5
Number of Spindle Speeds
8
Carriage Travel (In.)
36-3/8
Distance Between Centers (In.)
40
Tailstock Taper
MT3
Thread Range (mm)
0.4 to 7
Number of Threads (mm)
26
Tailstock Travel (In.)
5
Swing Over Cross Slide (In.)
6-1/2
Coolant Tank Capacity
2 gal.
Application
Metal Turning
Swing Over Cross Slide
6 1/2 in
Number of Metric Threads
26
Swing In Gap
18 3/4 in
Max. Threads per Inch
56
Max. Spindle Speed
2,000 RPM
Spindle Bore
2 in
Min. Metric Thread
0.4 mm
Max. Cross Feed
0.0150 in
Number of Inch Threads
34
Min. Spindle Speed
70 RPM
Swing Over Bed
13 in
Min. Cross Feed
0.0005 in
Min. Threads per Inch
4
Max. Metric Thread
7 mm
Metric Thread - Minimum
0.4 mm
Threads per Inch - Maximum
56
Spindle Speed - Minimum
70 RPM
Swing Over Gap
8 in
Cross Feed - Maximum
0.015 in/rev
Includes Digital Readout
Digital Readout Included
Cross Feed - Minimum
0.0005 in/rev
Metric Thread - Maximum
7 mm
Spindle Speed - Maximum
2,000 RPM
Threads per Inch - Minimum
4

Description

Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 2 hp, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 58 in, Overall Length 76 in, Overall Width 30 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
