  11. Lathe, 230V AC Volts, 6 hp HP, 60 Hz, Three Phase 60 in Distance Between Centers

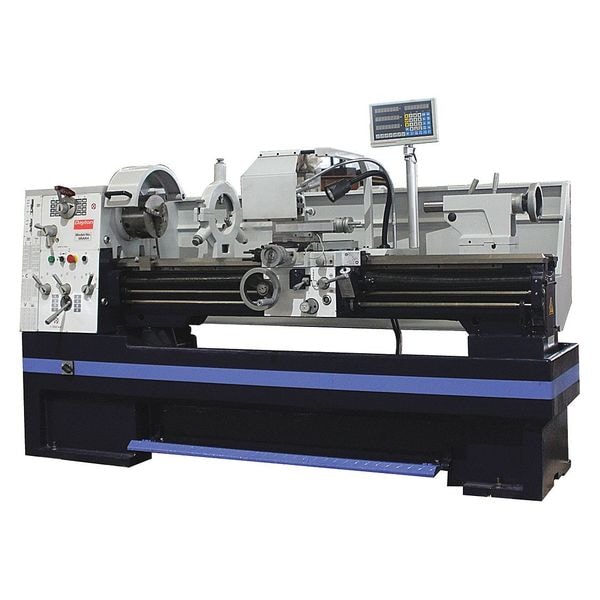

Dayton Lathe, 230V AC Volts, 6 hp HP, 60 Hz, Three Phase 60 in Distance Between Centers 53UH14 - main

Lathe, 230V AC Volts, 6 hp HP, 60 Hz, Three Phase 60 in Distance Between Centers

  • Mfr # 53UH14

  • Zoro # G9188859

product price: $36,525.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
6
Phase
Three
Voltage
230V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UH14
Zoro #
G9188859
UPC #
-
Country of Origin
China

Dimensions

Overall Width
36 in
Bed Width (In.)
9-7/8
Gap Length (In.)
10
Overall Length
97 in
Overall Height
53 in
Bed Width
9 7/8 in
Gap Length
10 in
Overall Depth
97 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
6
Phase
Three
Voltage
230V AC
Frequency
60 Hz
Swing Over Bed (In.)
16
Distance Between Centers
60 in
Horsepower
6 hp
Thread Range (mm)
0.2 to 14
Compound Travel (In.)
4
Distance Between Centers (In.)
60
Spindle Taper
MT-6
Coolant Tank Capacity
4-55/64 gal.
Tailstock Travel (In.)
4-3/4
Longitudinal Feed Rates
0.006 to 0.067
Spindle Speed (RPM)
45 to 1800
Features
Charlock Spindle Seat, Digital Readout, Hardened and Ground Bed Guide Ways, Stand
Carriage Travel (In.)
55
Thread Range (In.)
2 to 72
Number of Threads (In.)
45
Hz
60
Cross Travel (In.)
9
Number of Threads (mm)
42
Swing Over Cross Slide (In.)
9-13/16
Spindle Bore (In.)
2
Cross Feed Rates
0.001 to 0.033
Swing In Gap (In.)
23-7/32
Tailstock Taper
MT4
Includes
(2) 4MT Dead Centers, (4) Jaw Chucks, 4-Way Tool Post, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
Number of Spindle Speeds
16
Spindle Bore
2 in
Max. Threads per Inch
72
Max. Cross Feed
0.0330 in
Swing In Gap
23 7/32 in
Min. Spindle Speed
45 RPM
Min. Metric Thread
0.2 mm
Max. Metric Thread
14 mm
Application
Metal Turning
Min. Cross Feed
0.0010 in
Swing Over Bed
16 in
Swing Over Cross Slide
9 13/16 in
Min. Threads per Inch
2
Number of Inch Threads
45
Number of Metric Threads
42
Max. Spindle Speed
1,800 RPM
Cross Feed - Maximum
0.033 in/rev
Threads per Inch - Maximum
72
Threads per Inch - Minimum
2
Lathe Head Drive
Gear Drive
Includes Digital Readout
Digital Readout Included
Spindle Speed - Maximum
1,800 RPM
Includes Taper Attachment
No Taper Attachment
Metric Thread - Minimum
0.2 mm
Includes Collet Closer
No Collet Closer
Swing Over Gap
10 in
Metric Thread - Maximum
14 mm
Digital Readout Included
DPA 2000
Cross Feed - Minimum
0.001 in/rev
Spindle Speed - Minimum
45 RPM

Description

Lathe, Distance Between Centers 60 in, Voltage 230V AC, Horsepower 6 hp, Min. Spindle Speed 45 RPM, Application Metal Turning, Overall Height 53 in, Overall Length 97 in, Overall Width 36 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT4
