Shop DAYTON

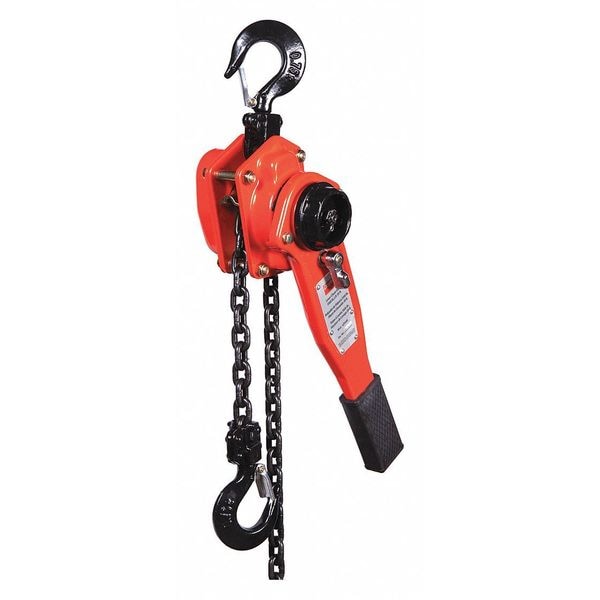

Lever Chain Hoist, 1,500 lb Load Capacity, 20 ft Hoist Lift, 29/32 in Hook Opening

  • Mfr # 4ZX45

  • Zoro # G2702646

product price:
$
347.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Load Capacity
1,500 lb
Includes
Safety Latch Hooks
Chain Length
20 21/32 ft
Hook Opening
29/32 in
Lever Length
12 3/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4ZX45
Zoro #
G2702646
UPC #
190735341629
Country of Origin
China
Item
Lever Chain Hoist
Load Capacity
1,500 lb
Hoist Lift
20 ft
Includes
Safety Latch Hooks
Hook Opening
29/32 in
Chain
Alloy Steel - G80
Standards
ANSI/ASME B30.21
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
No
Pull to Lift Rated Load
31 lb
Min. Between Hooks
12 51/64 in
Brake
Double Disc Brake, Weston Style
Finish
Handwheel, Hooks, Housing, Lever, Side Plates: Powder Coating; Chain Guides: Zinc Plated
Mount Type
Hook Mounted - No Trolley
Reeving
1
Trolley Configuration
Hook Mounted - No Trolley
Features
The Top and Bottom Hooks Rotate 360 Degrees and Open Slowly without Fracturing Under Overloads, Dual-Stage Reduction Gearing
Color
Red
Included Components
Safety Latch Hooks
Maximum Lifting Capacity
1,500 lb
Operating Position
Vertical
Includes Brake
Brake Included
For Outdoor Use
Yes
Body Material
Steel
Power Source
Lever
Number of Reeves
1
Body Finish
Powder Coated
Chain Material
Alloy Steel
Lifting Hook Material
Alloy Steel
Number of Load Chains
1
Brake Type
Double Disc Brake, Weston Style
Lifting Hook Type
Hook with Safety Latch
Chain Grade
Grade 80
Includes Clutch
Clutch Included
Headroom
12 13/16 in
Chain Finish
Black Tempered
Overload Protection Included
No
Power Source - TS Only
Lever
Power Source - old
Lever

Description

Lever Chain Hoist, Chain Length 20 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 12 13/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,500 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 15/16 in, Body Material Steel, Body Width 5 5/16 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel
