  13. Lever Chain Hoist, 6,000 lb Load Capacity, 20 ft Hoist Lift, 1 29/64 in Hook Opening
Shop All Lever Chain Hoists
Dayton

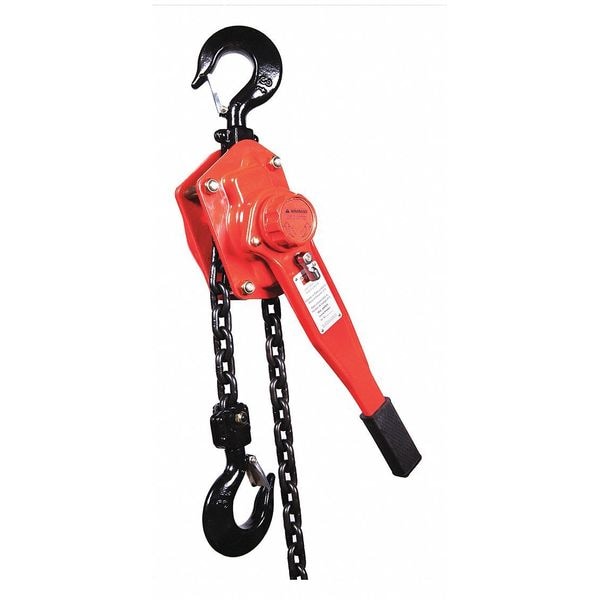

Lever Chain Hoist, 6,000 lb Load Capacity, 20 ft Hoist Lift, 1 29/64 in Hook Opening

product price: $609.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 6,000 lb
  • Hoist Lift 20 ft
  • Includes Safety Latch Hooks
  • Chain Length 21 5/64 ft
  • Hook Opening 1 29/64 in
See all product information

Product Information

Dimensions

Chain Length 21 5/64 ft
Lever Length 16 1/2 in
Manufacturers Warranty Length 1 yr
Maximum Lifting Length 20 ft
Mfr. Warranty Length 1 yr
Lifting Hook Opening Width 1 7/16 in
Body Width 8 1/4 in
Body Depth 7 5/8 in
Minimum Retracted Length 20 1/2 in

Details

Item Lever Chain Hoist
Load Capacity 6,000 lb
Hoist Lift 20 ft
Includes Safety Latch Hooks
Hook Opening 1 29/64 in
Chain Alloy Steel - G80
Standards ANSI/ASME B30.21
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 71 lb
Min. Between Hooks 20 15/32 in
Brake Double Disc Brake, Weston Style
Finish Handwheel, Hooks, Housing, Lever, Side Plates: Powder Coating; Chain Guides: Zinc Plated
Trolley Configuration Hook Mounted - No Trolley
Reeving 1
Color Red
Features Factory-Set Overload Protection will not let Hoists Operate, but will allow operators to Lower Loads, Fully Enclosed Lift Wheel that Protects Gears, Powder-Coated Finish, Rubber Grip, Safety Chain Stop
Included Components Safety Latch Hooks
Brake Type Double Disc Brake, Weston Style
Operating Position Vertical
Mount Type Hook Mounted - No Trolley
Number of Reeves 1
Chain Material Alloy Steel
Power Source Lever
Lifting Hook Type Hook with Safety Latch
Body Finish Powder Coated
Headroom 20 1/2 in
Includes Brake Brake Included
Maximum Lifting Capacity 6,000 lb
Number of Load Chains 1
For Outdoor Use Yes
Body Material Steel
Includes Clutch Clutch Included
Chain Grade Grade 80
Chain Finish Black Tempered
Lifting Hook Material Alloy Steel
Overload Protection Included Yes

Description

Lever Chain Hoist, Chain Length 21 1/16 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 20 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 6,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 7 5/8 in, Body Material Steel, Body Width 8 1/4 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
