Shop DAYTON

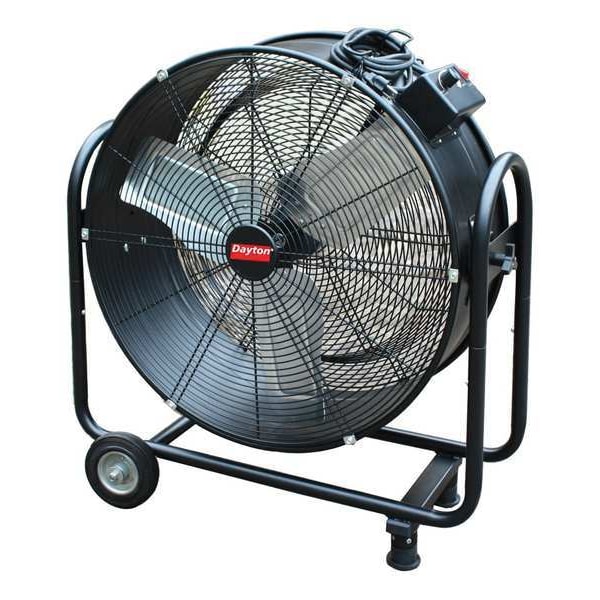

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 7,000 cfm, Non-Oscillating

  • Mfr # 31XL41

  • Zoro # G9098187

product price:
$
680.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
31XL41
Zoro #
G9098187
UPC #
190735257494
Country of Origin
China
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
7,000 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
73 dBA
Item
Portable Fan
Air Velocity @ 40 Ft.
95 fpm
Assembled
Partially Assembled
Motor Enclosure
Totally Enclosed Air-Over
Max. Ambient Temp.
120 Degrees F
Thermal Protection
Automatic Reset
Application
Spot Cooling and People Cooling
Guard Material
Steel
Fan Mounting Location
Floor
Wire Guard Finish
Powder Coated
Motor Insulation
A
Mobile/Stationary
Mobile
Air Velocity @ 20 Ft.
250 fpm
Watts
250 W
Air Velocity @ 60 Ft.
8 fpm
Standards
cULus
Air Velocity @ 10 Ft.
400 fpm
Fan Accessory Style
Standard
CFM High
7000
Hz
60 Hz
Includes
5 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Motor RPM
250/1200
Housing Material
Steel
Number of Blades
3
Bearing Type
Ball
Environmental Applications
Industrial
Motor Type
Brushless DC
Fan Style
Standard
Wheeled Base
Mobile
Wheel Material
Steel/Rubber
NEMA Plug Configuration
5-15P
Assembly Required
Yes
RPM
250 RPM, 1,200 RPM
Amps
3.4 A
Features
Variable Speed Motor
Fan Housing Material
Steel
Head Tilt Adjustment
360 Degrees
Color
Black
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Smart Connectivity
Not Bluetooth Compatible
Number of Conductors
3
Removable Base
Permanently Lubricated
Bearing Protection
Double-Sealed
High-Visibility
No
Guard Color
Black
Environment Rating
Dry
Number of Wheels
2
Sound Level - Minimum
50 dB
IP Rating
Not Rated
Fan Shape
Drum
Airflow
7,000 cfm
Corrosion-Resistant
No
Housing Finish
Painted

Description

Standard-Duty Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 7000, Air Velocity @ 20 Ft. 250 fpm, Motor HP 1/4 hp, Motor RPM 250/1200, Operating Amps 0.1/3.1, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 250/1200, Sound Level 73 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 250, Motor Type Brushless DC (ECM), Drive Type Direct Drive, Outside Dia. 25 In., Height 31 3/8 in, Width 29 1/4 in
