Shop DAYTON

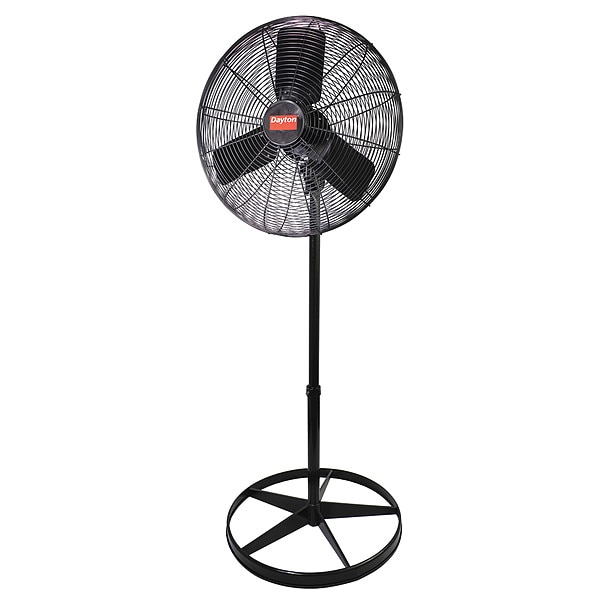

Light Duty Quiet Design Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V, Oscillating

  • Mfr # 2RDZ6

  • Zoro # G0782923

product price:  $434.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RDZ6
Zoro #
G0782923
UPC #
190735229811
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Shaft Dia.
1/2 in
Height
81 in
Max. Depth
29-1/2"
Width
29 1/2 in
Fan Cord Length
10 ft
Depth
29 1/2 in

Details

Oscillation
Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
2,280/4,320/5,030 cfm
Drive Type
Direct Drive
Blade Material
Steel
Sound Level
69.4 dBA
Item
Freestanding Fan
Housing Material
Steel
CFM Low
2280
Motor Enclosure
Totally Enclosed Air-Over
Number of Blades
3
Max. Ambient Temp.
130 Degrees F
Watts
250/190/70 W
Assembled
No
Requires
Assembly
Number of Conductors
3
Standards
ETL
CFM High
5030
Bearing Type
Ball
Thermal Protection
Auto
Air Velocity @ 20 Ft.
500/350/220 fpm
Fan Mounting Location
Pedestal
Includes
Assembly Hardware, Pedestal
CFM/Watt
20.2
Environmental Applications
Industrial
Fan Accessory Style
Quiet Design
Wire Guard Finish
Powder Coated
CFM Medium
4320
Motor RPM
1025/880/480
Mobile/Stationary
Stationary
Fan Style
Quiet Design
Guard Material
Steel
Hz
60 Hz
Motor Insulation
A
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Application
Spot Cooling and People Cooling
RPM
480 RPM, 880 RPM, 1,025 RPM
Amps
2/1.6/0.6 A
Assembly Required
Yes
Wheeled Base
Stationary
Fan Housing Material
Steel
Material
Steel
Color
Black
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Sound Level - Minimum
48.6 dBA
Fan Shape
Basket
Guard Color
Black
Base Type
Pedestal
Airflow
2,280 cfm, 4,320 cfm, 5,030 cfm

Description

Light-Duty Quiet-Design Industrial Fan, Blade Dia. 24 in, Stationary, Oscillating, 3 Speeds, Voltage 115V AC, 1 Phase, CFM High 5030, CFM Low 2280, Air Velocity @ 20 Ft. 500/350/220 fpm, Motor HP 1/4 hp, Motor RPM 1025/880/480, Operating Amps 2.0/1.6/0.6, Fan Mounting Location Pedestal, Fan Accessory Style Quiet Design, Sound Level 69.4/65.1/48.6 dBA, Max. Ambient Temp. 130 Degrees F, Hz 60 Hz, Watts 250/190/70, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 81 in
