This item is Discontinued.

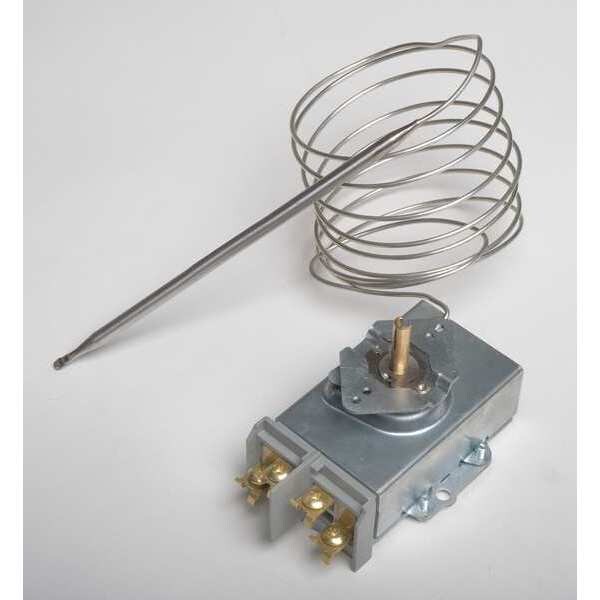

Dayton Line Volt Mechanical Tstat, Open on Rise, 30 Degrees to 110 Degrees F 6EDY8

Line Volt Mechanical Tstat, Open on Rise, 30 Degrees to 110 Degrees F (Discontinued)

  • Mfr # 6EDY8
  • Zoro # G1155865
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6EDY8
Zoro #
G1155865
UPC #
190735362242
Country of Origin
China

Dimensions

Width
2 1/4 in
Height
3 1/8 in
Sensing Bulb Length
5 5/8 in
Sensing Bulb Dia.
3/8 in
Capillary Length
84 in
Bulb Length
5 5/8 in
Overall Height
3 1/8 in
Overall Width
2 1/4 in
Sensor Size
5 5/8 in L, 3/8 in Dia
Bulb Diameter
3/8 in
Overall Depth
3 1/8 in

Details

Switch Action
Open on Rise
Voltage
120 to 480V AC
Sensor Type
Copper Bulb
Differential
+/-9 Degrees F
Thermostat Control Range
30 Degrees to 110 Degrees F
Switch Type
DPST
Contact Rating Resistive @ 240V
22 A
Thermostat Heating/Cooling
Heating
Inductive Amps @ 120V
16 A
Contact Rating Resistive @ 277V
30 A
Includes
Remote Sensing Bulb
Number of Switches
1
Thermostat Item
Line Voltage Mechanical Thermostat
Remote Sensing Capability
Yes
Thermostat Voltage
120 to 480V AC
Remote Sensing Bulb Included
Yes
Thermostat Programmable
No
Full Load Amps @ 240VAC
30 A
Enclosure Type
None
Item
Line Voltage Mechanical Thermostat
Pilot Duty Contacts (VA)
125 VA
Contact Rating Resistive @ 120V
15 A
Control Range
30 Degrees to 110 Degrees F
Thermostat Switch Type
DPST
Full Load Amps @ 120VAC
30 A
Inductive Amps @ 240V
30 A
For Use With
Regulating Temperature of Air or Liquids in Ducts, Pipes, Tanks or Boilers
Thermostat Type
Line Voltage Mechanical
Mounting
Unit Mount
Application
Heat Only
Type
Heating
Dehumidification Control
No
Phase
1
Control Type
Mechanical Selector Dial
Dual Transformer Compatible
No
Features
Remote Sensing Element for Wide Range of Control Applications
Enclosure Material
Steel
Frequency
50 Hz, 60 Hz
Contact Rating
120 to 480V AC
Enclosure Color
Grey
Amperage
30 A
Minimum Control Temperature
30 Degrees F
Electrical Connection Type
Hardwired
Maximum Control Temperature
110 Degrees F
Temperature Sensitivity
+/-9 Degrees F
Minimum Operating Temperature
-22 Degrees F
Pilot Duty Rating
125V AC
Setpoint Adjustability
Adjustable Setpoint
Sensor Location
Built-In
Minimum Operating Humidity
5 %
Enclosure NEMA Rating
Not Rated
Temperature Control Range
30 Degrees to 110 Degrees F
Maximum Operating Humidity
80 %
Programming Capability
No
Number of Poles
1
Compatible System Type
Hydronic Systems
Mounting Direction
Horizontal; Vertical
Temperature Differential
9 Degrees F
Maximum Operating Temperature
149 Degrees F
Differential Type
Fixed
Temperature Scale
Fahrenheit
Millivolt Compatible
No

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 30 Degrees to 110 Degrees F, Thermostat Voltage 120 to 480VAC, Full Load Amps @ 120VAC 30A, Full Load Amps @ 240VAC 30A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open on Rise, Number of Switches 1, Differential +/-9 Degrees F, Height 3-1/8 In., Width 2-1/4 In.
