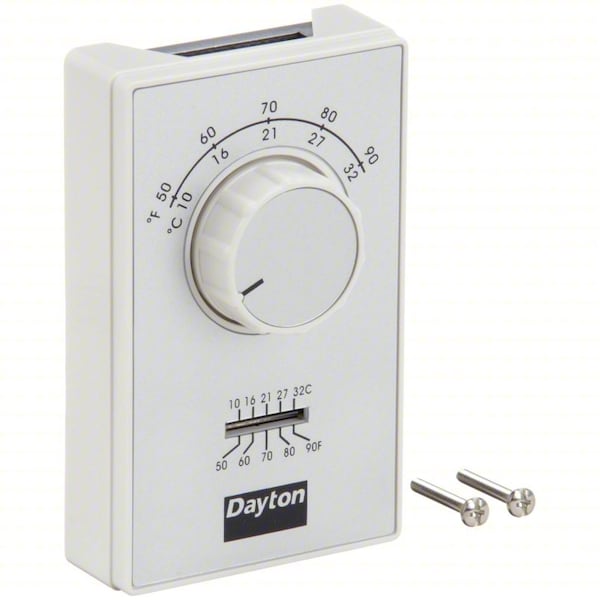

Line Voltage Mechanical Thermostat For Wall, 50 to 90 Degree Analog Dial, Heat Only, White

  • Mfr # 4PU49C

  • Zoro # G1543744

product price:
$
47.99
/ea

Key Features

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4PU49C
Zoro #
G1543744
UPC #
190735331989
Country of Origin
China
Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
50 to 90 Degrees F
Control Type
Exposed Dial
Voltage
120 to 277V AC
Item
Line Voltage Mechanical Thermostat
Number of Switches
1
Contact Rating Resistive @ 240V
22 A
Inductive Amps @ 240V
10 A
Locked Rotor Amps @ 120V
82.8 A
Locked Rotor Amps @ 240V
60 A
Contact Rating Resistive @ 120V
22 A
Standards
CSA Certified, UL Listed
Sensor Type
Bi-Metallic Spring
Inductive Amps @ 120V
13.8 A
Contact Rating Resistive @ 277V
22 A
Enclosure Type
ABS
Includes
Thermometer, Temperature Readout
Thermostat Type
Line Voltage
Agency Compliance
UL and CSA
Features
Fahrenheit and Celsius Temperature Scale
Stages
1H
Temperature Sensitivity
+/-2 Degrees F
Temperature Differential
2 to 4 Degrees F
Contact Rating
120 to 277V AC
Differential Type
Fixed
Maximum Control Temperature
90 Degrees F
Enclosure Color
White
Full Load Amps @ 120V AC
22 A
Temperature Readout
Yes
Full Load Amps @ 240V AC
22 A
Includes Positive Off
No
Mounting Direction
Vertical
System Settings
On-Off
Minimum Control Temperature
50 Degrees F
Housing Material
Plastic
Fan Settings
No Fan Setting
Number of Poles
1
Amperage
22 A
Temperature Scale
Fahrenheit/Celsius
Programming Capability
Not Programmable
Housing Color
White

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 50 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 22 A, Full Load Amps @ 240VAC 22 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included No, Switch Action Open on Rise, Number of Switches 1, Differential 2 Degrees to 4 Degrees F, Height 4 3/4 in, Width 2 3/4 in, Depth 1 1/2 in
