Shop DAYTON

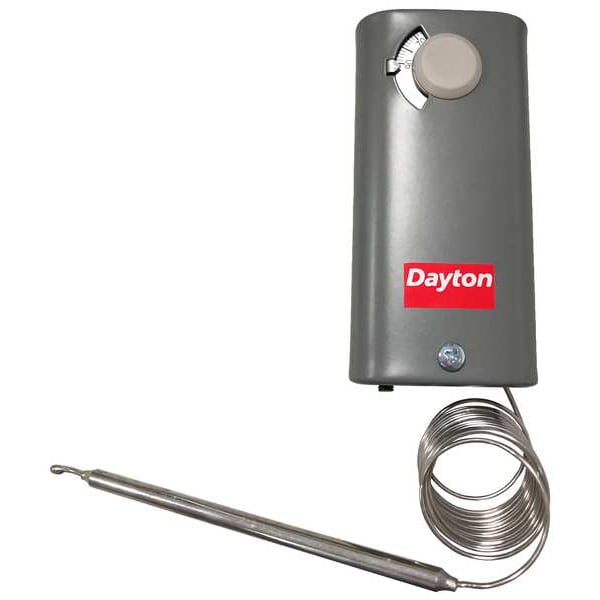

Line Voltage Mechanical Thermostat, Heat or Cool, -30 to 90F, Exposed Dial, 120V/240V/277V AC, 1C/1H

  • Mfr # 6EDY7

  • Zoro # G3688361

product price:
$
76.69
/ea

Key Features

Compatible System Type
Attic Fans, Fan Coil Units
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EDY7
Zoro #
G3688361
UPC #
190735362235
Country of Origin
China

Dimensions

Sensing Bulb Dia.
1/4 in
Capillary Length
96 in
Overall Depth
2-1/4 in
Overall Width
2-1/4 in
Overall Height
5-3/4 in
Bulb Length
5 in
Capillary Length/Bulb Diameter
8 ft Capillary, 5 in x 1/4 in Bulb
Bulb Diameter
1/4 in

Details

Compatible System Type
Attic Fans, Fan Coil Units
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
-30 to 90 Degrees F
Control Type
Exposed Dial
Voltage
120V/240V/277V AC
Mounting
Vertical or Horizontal
Item
Line Voltage Mechanical Thermostat
Contact Rating Resistive @ 277V
22 A
Inductive Amps @ 120V
16 A
Locked Rotor Amps @ 120V
96 A
Inductive Amps @ 240V
8 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Resistive Amps @ 208VAC
22 A
Contact Rating Resistive @ 240V
22 A
Standards
cULus
Number of Switches
1
Includes
Mounting Hardware, Remote Sensing Bulb
Enclosure Type
Steel
Locked Rotor Amps @ 240V
48 A
Inductive Amps @ 208V
9.2 A
Contact Rating Resistive @ 120V
22 A
For Use With
Regulating Temperature of Air or Liquids in Ducts, Pipes, Tanks or Boilers
Thermostat Type
Indoor Single-Stage Controls
Phase
1
Dehumidification Control
No
Temperature Limiting
No
Features
Remote Sensing Element for Wide Range of Control Applications
Mounting Direction
Vertical
Frequency
50 Hz, 60 Hz
Enclosure Color
Gray
Shape
Rectangle
Minimum Control Temperature
-30 Degrees F
Temperature Differential
3 to 12 Degrees F
Contact Type
Snap Action
Maximum Operating Temperature
110 Degrees F
Electrical Connection Type
Hardwired
Enclosure NEMA Rating
1
Enclosure Finish
Chrome
Differential Type
Adjustable
Changeover Type
Automatic
Contact Rating
120/240/277V AC
Maximum Control Temperature
90 Degrees F
Sensor Location
Remote
Temperature Sensitivity
+/-3 Degrees F
Minimum Operating Temperature
-30 Degrees F
Stages
1H/1C
Temperature Scale
Fahrenheit
Number of Poles
1
Pilot Duty Rating
125 VA @ 24 to 600V AC
Full Load Amps @ 120V AC
16 A
Housing Material
Steel
Programming Capability
Not Programmable
Full Load Amps @ 240V AC
8 A
Resistive Amps @ 208V AC
22 A
Operating Temperature Range
-30 Degrees to 110 Degrees F
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range -30 Degrees to 90 Degrees F, Thermostat Voltage 24 to 600VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 3.5 to 20 Degrees F, Height 4-1/2 In.
