  6. Linear Actuator, 115VAC, 1300 lb., 10 In

This item is Discontinued.

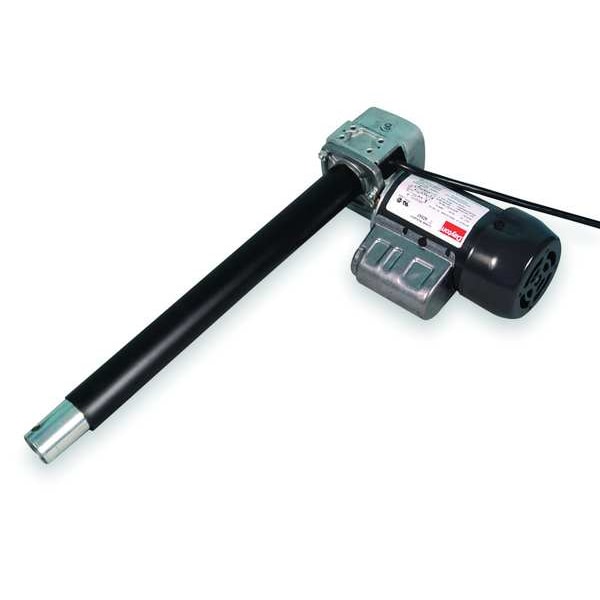

Dayton Linear Actuator, 115VAC, 1300 lb., 10 In 1XFX6

Linear Actuator, 115VAC, 1300 lb., 10 In (Discontinued)

  • Mfr # 1XFX6
  • Zoro # G3304707
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1XFX6
Zoro #
G3304707
UPC #
190735149720
Country of Origin
United States

Dimensions

Stroke Length
10 in
Retracted Length
20.5 in
Dimension L
20 1/2 in
Dimension E
1 to 5 in
Dimension N
3/4 in
Dimension B
0.505/0.500 in
Dimension A
3.94 in
Dimension J
5.3 in
Dimension G
19 in
Dimension H
19.2 in
Dimension M
30 1/2 in
Dimension D
2 in
Dimension C
2.5 in
Overall Width
10.6 in
Overall Height
4.45 in

Details

Item
Linear Actuator
Rated Load
1,300 lb
Speed @ Rated Load
8.9 in/min
Duty Cycle
25 %
Voltage
115V AC
Full Load Amps
4.2 A
Hz
60
Thermal Protection
Automatic
Housing Material
Steel
Motor Type
Permanent Split Capacitor
Feedback Signal
No
Capacitor Required
Yes
Enclosure Type
Totally Enclosed Fan-Cooled
Capacitor Included
Yes
Limit Switch Type
Adjustable
Nut Material
Plastic
Drive System Type
Acme Screw
Screw Type
Acme
Max. Ambient Temp.
40 Degrees C/104 Degrees F
Standards
CSA Certified, UL Listed
Gear Material
Steel
Motor Type Voltage
AC Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Frequency
60 Hz
Load Capacity
1,300 lbf
Speed at Full Load
0.9 in/sec
Speed at No Load
1.72 in/sec
Limit Switch Setting
Adjustable
Includes Capacitor
Capacitor Included
Operating Temperature - Maximum
104 Degrees F
Full Load Current
4.2 A
Includes Thermal Protection
Thermal Protection Included
System of Measurement
Inch
Gear Ratio
36:1

Description

Linear Actuator, Motor Type Permanent Split Capacitor, Voltage 115V AC, Nut Material Plastic, Load Capacity 1,300 lbf, Stroke Length 10 in, Speed at Full Load 0.9 in/sec, Duty Cycle 25 Percent, Full Load Current 4.2 A, Retracted Length 20.5 in, Gear Material Steel, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Motor Enclosure Design Totally Enclosed Fan-Cooled, Frequency 60 Hz, Housing Material Steel, Limit Switch Setting Adjustable
