This item is Discontinued.

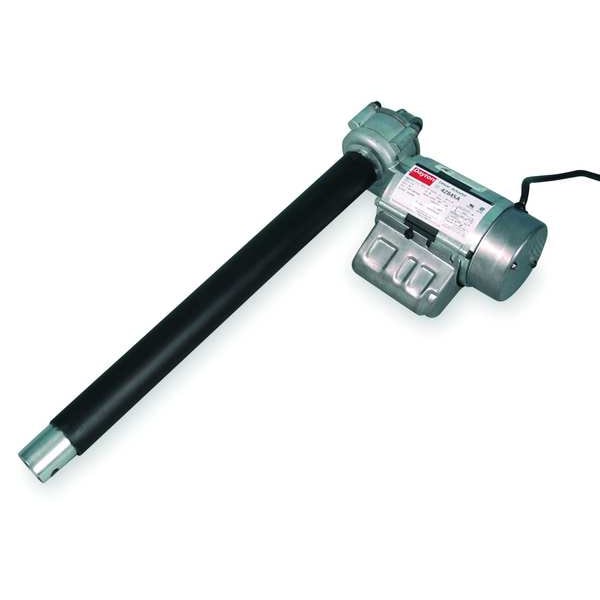

Dayton Linear Actuator, 115VAC, 400 lb., 12 In 1XFX9

Linear Actuator, 115VAC, 400 lb., 12 In (Discontinued)

  • Mfr # 1XFX9
  • Zoro # G0675114
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1XFX9
Zoro #
G0675114
UPC #
190735149751
Country of Origin
United States

Dimensions

Stroke Length
12 in
Retracted Length
20 in
Dimension D
1.38 in
Dimension G
18.92 in
Dimension L
20 in
Dimension B
0.382/0.376 in
Dimension M
32 in
Dimension E
.75 to 8 in
Dimension J
4.63 in
Dimension H
18.63 in
Dimension C
1.66 in
Dimension A
5.43 in
Dimension N
1/2 in
Overall Width
8.75 in
Overall Height
3.75 in

Details

Item
Linear Actuator
Rated Load
400 lb
Speed @ Rated Load
8.4 in/min
Duty Cycle
25 %
Voltage
115V AC
Full Load Amps
1.4 A
Standards
CSA Certified, UL Listed
Capacitor Required
Yes
Hz
60
Max. Ambient Temp.
40 Degrees C/104 Degrees F
Feedback Signal
No
Motor Type
Permanent Split Capacitor
Screw Type
Acme
Capacitor Included
Yes
Housing Material
Steel
Enclosure Type
Totally Enclosed Non Ventilated
Limit Switch Type
Adjustable
Nut Material
Plastic
Drive System Type
Acme Screw
Thermal Protection
Automatic
Gear Material
Steel
Motor Type Voltage
AC Motor
Includes Capacitor
Capacitor Included
Full Load Current
1.4 A
Load Capacity
400 lbf
Speed at Full Load
0.14 in/sec
System of Measurement
Inch
Includes Thermal Protection
Thermal Protection Included
Limit Switch Setting
Adjustable
Frequency
60 Hz
Gear Ratio
24:1
Operating Temperature - Maximum
104 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated

Description

Linear Actuator, Motor Type Permanent Split Capacitor, Voltage 115V AC, Nut Material Plastic, Load Capacity 400 lbf, Stroke Length 12 in, Speed at Full Load 0.14 in/sec, Duty Cycle 25 Percent, Full Load Current 1.4 A, Retracted Length 20 in, Gear Material Steel, Includes Capacitor Capacitor Included, Drive System Type Acme Screw, Motor Enclosure Design Totally Enclosed Non-Ventilated, Frequency 60 Hz, Housing Material Steel, Limit Switch Setting Adjustable
