  6. Low Voltage Thermostat, 7 or 5-2 Programs, 3 H, 2 C, Hardwired/Battery, 24V AC

This item is Discontinued.

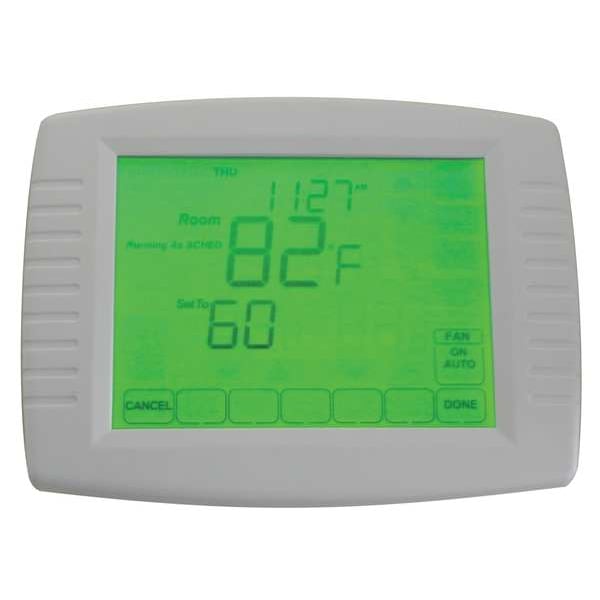

Dayton Low Voltage Thermostat, 7 or 5-2 Programs, 3 H, 2 C, Hardwired/Battery, 24V AC 6EDZ6

Low Voltage Thermostat, 7 or 5-2 Programs, 3 H, 2 C, Hardwired/Battery, 24V AC (Discontinued)

  • Mfr # 6EDZ6
  • Zoro # G1206274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6EDZ6
Zoro #
G1206274
UPC #
190735362327
Country of Origin
China

Dimensions

Height
6"
Width
4 1/2"
Depth
1 1/4 in
Overall Height
4 1/2 in
Screen Height
3 1/8 in
Digit Size
Standard
Mounting Hole Diameter
1/4 in
Overall Width
6 in
Screen Width
4 1/8 in
Overall Depth
1 1/4 in

Details

Item
Low Voltage Thermostat
Voltage
24V AC
Stages Heat
3
Color
White
System Switching
Auto-Heat-Cool-Off
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7 or 5-2
Footnotes
1, 2, 3, 4, 6, 8
WiFi Capability
No
Temporary Program Override
Yes
Temporary Temperature Hold
Yes
Terminal Designations
S1,S2,C,R,RC,W,W2,,Y,Y2,G,E,O/B,AUX
Temp. Settings per Day
4
Dehumidification Control
No
Humidification Control
No
Programmable Fan
Yes
Includes
2 AA Batteries
Filter Indicator
Yes
Low Battery Indicator
Yes
For Use With
Heating/Cooling Systems, Heat Pump, Hydronic Zone Heat, Outdoor or Indoor Remote Sensors
Remote Sensing Capability
Yes
Temperature Limiting
Yes
Fan Switching
Auto-On-Circulate
Automatic Changeover
Yes
Batteries Included
Yes
Key Pad Lockout
Yes
Battery Backup
Yes
Display Type
Digital
Mounting
Horizontal or Vertical Electrical Box
Sensor Type
Bi-Metallic Spring
Type
Touch Screen Programmable
Occupancy Sensor
No Occupancy Sensing
Stages
3H/2C Conventional, 3H/2C Heat Pump
Control Type
Touch Screen
System/Fan Settings
Auto-Cool-Heat-Off/Auto-Circulate-On
Temperature settings per day
4
Pilot Duty Rating
24V AC
Phase
1
Mounting Direction
Horizontal
Operating Temperature Range
40 Degrees to 99 Degrees F
Number of Cooling Stages - Conventional System
2
Housing Type
Standard Housing
Programming Capability
7 Day
Changeover Type
Automatic and Manual
Compatible System Type
Electric Forced Air Furnaces, Fan Coil Units, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt, PTAC
Enclosure NEMA Rating
Not Rated
Temperature Scale
Fahrenheit/Celsius
Mounting Direction/Shape
Horizontal
Requires C-Wire
No
Temperature Control Range
45 Degrees to 95 Degrees F
Housing Color
White
Maximum Operating Temperature
99 Degrees F
Application/Stages
Heat and Cool; 3H/2C Conventional, 3H/2C Heat Pump
Number of Zones
3
System Settings
Auto-Cool-Heat-Off
Maximum Control Temperature
99 Degrees F
Backlit Screen
Yes
Thermostat Type
Low Voltage
Differential Type
Adjustable
Backlit Type
Touch Activated
Sensor Location
Built-In
Filter Change Reminder
Yes
Number of Heating Stages - Conventional System
3
Temperature Readout
Yes
Battery Type
(2) AA Batteries
Temperature Sensitivity
+/-1.5 Degrees F
Number of Cooling Stages - Heat Pump System
2
Operating Humidity Range
5% to 95%
Shape
Rectangle
Number of Switches
4
Application
Heat and Cool
Fan Settings
Auto-On-Circulate
Number of Relay Inputs
3
Number of Relay Outputs
7
Temperature Differential
1.5 Degrees F
Includes Batteries
Yes
Includes Positive Off
Yes
Housing Material
Plastic
Minimum Operating Humidity
5 %
Minimum Operating Temperature
40 Degrees F
Backlit Screen Color
Green
External Power Source
Furnace
Millivolt Compatible
Yes
Smart Connectivity
No Connectivity
Differential Cool
2 Degrees F
Electrical Connection Type
Screw Terminals
Number of Heating Stages - Heat Pump System
3
Differential Heat
2 Degrees F
Frequency
50 Hz, 60 Hz
Maximum Operating Humidity
95 %
Wireless System Compatibility
No
Minimum Control Temperature
40 Degrees F
Contact Type
Snap Action
Temperature Adjustment
On-Off
Wireless
Yes

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7 or 5-2, Terminal Designations AUX, C, E, G, L, O/B, R, RC, S1, S2, W, W2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off, Fan Switching Auto-On-Circulate, Display Type Digital, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control No, Remote Sensing Capability Yes, Temporary Program Override Yes
