  13. Manual Chain Hoist, 1000 lb., Lift 15 ft.
Shop All Manual Chain Hoists
Dayton

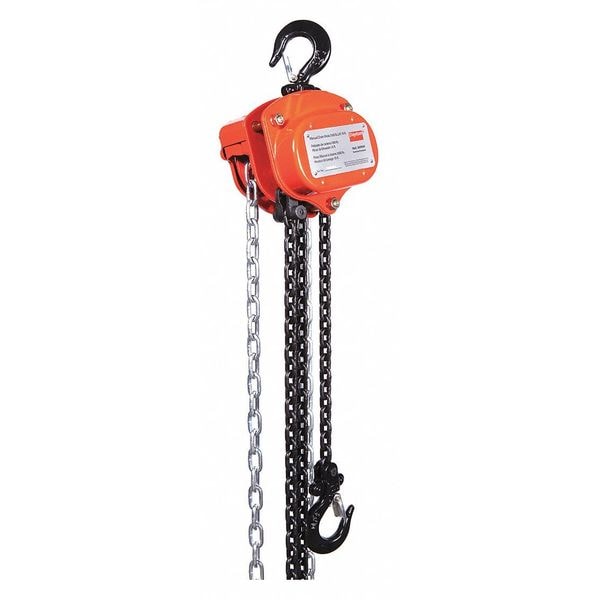

Manual Chain Hoist, 1000 lb., Lift 15 ft.

original price: $367.92
4% off
new price: $350.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 1,000 lb
  • Hoist Lift 15 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection Yes
  • Pull to Lift Rated Load 56 lb
See all product information

Product Information

Dimensions

Housing Length 5 7/16 in
Housing Width 5 3/4 in
Housing Depth 5 in
Manufacturers Warranty Length 1 yr
Body Depth 5 in
Maximum Lifting Length 15 ft
Lifting Hook Opening Width 3/4 in
Minimum Retracted Length 11 5/8 in
Mfr. Warranty Length 1 yr
Body Width 5 11/16 in
Chain Length 15 5/8 ft

Details

Load Capacity 1,000 lb
Hoist Lift 15 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 56 lb
Min. Between Hooks 11 1/2 in
Hook Opening 25/32 in
Brake Weston Style, Double Disc Brake
Item Manual Chain Hoist
Standards ANSI/ASME B30.16
Trolley Configuration Hook Mounted - No Trolley
Includes Safety Latch Hooks
Features Provide Low Headroom, Slip Clutch and Load Limiters help Prevent the Hoists from being used to Lift Loads Beyond Rated Capacity
Color Red
Mount Type Hook Mounted - No Trolley
Body Material Steel
Brake Type Double Disc Brake, Weston Style
For Outdoor Use Yes
Includes Brake Brake Included
Operating Position Vertical
Maximum Lifting Capacity 1,000 lb
Includes Clutch Clutch Included
Included Components Safety Latch Hooks
Lifting Hook Material Alloy Steel
Headroom 11 1/2 in
Number of Load Chains 1
Number of Reeves 1
Chain Finish Black Tempered, Zinc Plated
Chain Grade Grade 80
Body Finish Powder Coated
Lifting Hook Type Hook with Safety Latch
Chain Material Alloy Steel
Power Source Manual
Overload Protection Included Yes

Description

Manual Chain Hoist, Chain Length 15 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,000 lb, Maximum Lifting Length 15 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 in, Body Material Steel, Body Width 5 11/16 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
