  13. Manual Chain Hoist, 1000 lb., Lift 20 ft.

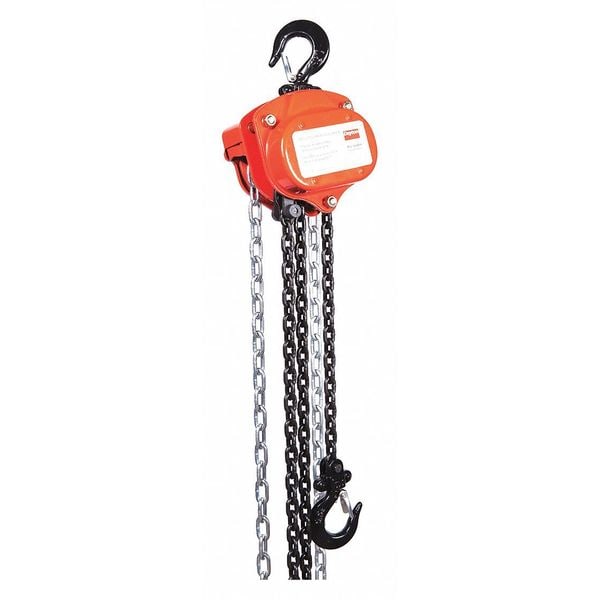

Dayton Manual Chain Hoist, 1000 lb., Lift 20 ft. 29XP26 - main

Manual Chain Hoist, 1000 lb., Lift 20 ft.

  • Mfr # 29XP26

  • Zoro # G9787014

product price: $375.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
1,000 lb
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
Yes
Pull to Lift Rated Load
56 lb
Min. Between Hooks
11 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29XP26
Zoro #
G9787014
UPC #
190735215883
Country of Origin
China

Dimensions

Housing Length
5 7/16 in
Housing Width
5 3/4 in
Housing Depth
5 in
Manufacturers Warranty Length
1 yr
Chain Length
20 5/8 ft
Minimum Retracted Length
11 5/8 in
Lifting Hook Opening Width
3/4 in
Body Width
5 11/16 in
Body Depth
5 in
Mfr. Warranty Length
1 yr
Maximum Lifting Length
20 ft

Details

Load Capacity
1,000 lb
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
Yes
Pull to Lift Rated Load
56 lb
Min. Between Hooks
11 1/2 in
Hook Opening
25/32 in
Item
Manual Chain Hoist
Standards
ANSI/ASME B30.16
Includes
Safety Latch Hooks
Brake
Weston Style, Double Disc Brake
Trolley Configuration
Hook Mounted - No Trolley
Features
Never Needs Resetting or Recalibrating, Over Load Limiter when Activated, Factory-Set Overload Protection will not let Hoist Operate, but will Allow Operators to Lower Loads (If Lifting) or Release Load (If Pulling), Overload Protection Resets Itself, Slip Clutch the Standard Slip Clutch Device helps Prevent the Hoist from being used to Lift Damaging Loads Beyond Rated Capacity
Color
Red
Brake Type
Double Disc Brake, Weston Style
Chain Finish
Black Tempered, Zinc Plated
Power Source
Manual
Lifting Hook Type
Hook with Safety Latch
Headroom
11 1/2 in
Number of Reeves
1
For Outdoor Use
Yes
Chain Material
Alloy Steel
Operating Position
Vertical
Mount Type
Hook Mounted - No Trolley
Body Finish
Powder Coated
Lifting Hook Material
Alloy Steel
Maximum Lifting Capacity
1,000 lb
Includes Clutch
Clutch Included
Included Components
Safety Latch Hooks
Number of Load Chains
1
Includes Brake
Brake Included
Chain Grade
Grade 80
Overload Protection Included
Yes
Body Material
Steel

Description

Manual Chain Hoist, Chain Length 20 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 in, Body Material Steel, Body Width 5 11/16 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
