Dayton

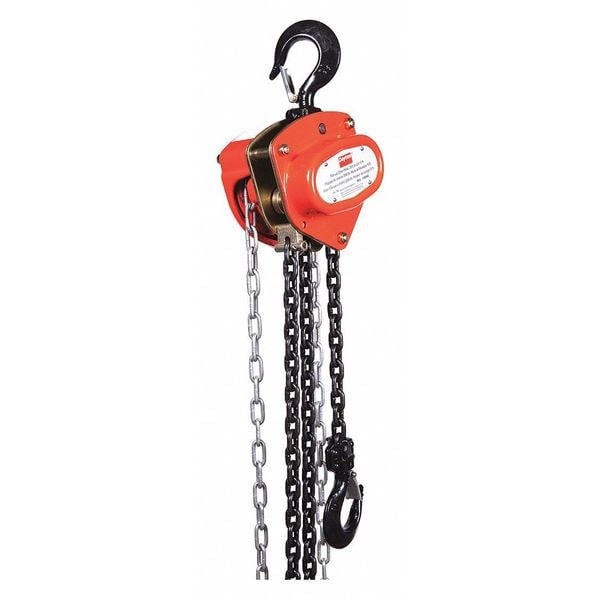

Manual Chain Hoist, 2000 lb., Lift 15 ft.

original price: $268.52
4% off
new price: $255.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 2,000 lb
  • Hoist Lift 15 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection No
  • Pull to Lift Rated Load 60 lb
See all product information

Product Information

Dimensions

Housing Length 5 25/32 in
Housing Width 6 in
Housing Depth 5 1/4 in
Manufacturers Warranty Length 1 yr
Minimum Retracted Length 13 3/4 in
Maximum Lifting Length 15 ft
Body Depth 5 1/4 in
Mfr. Warranty Length 1 yr
Lifting Hook Opening Width 1 1/8 in
Chain Length 15 3/4 ft
Body Width 5 1/8 in

Details

Load Capacity 2,000 lb
Hoist Lift 15 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 60 lb
Min. Between Hooks 13 3/4 in
Hook Opening 1 7/64 in
Includes Safety Latch Hooks
Standards ANSI/ASME B30.16
Brake Weston Style, Double Disc Brake
Trolley Configuration Hook Mounted - No Trolley
Item Manual Chain Hoist
Color Red
Features Friction-Reducing Roller and Ball Bearings
Number of Reeves 1
Chain Material Alloy Steel
Operating Position Vertical
Mount Type Hook Mounted - No Trolley
Includes Clutch Clutch Included
Maximum Lifting Capacity 2,000 lb
Brake Type Double Disc Brake, Weston Style
Power Source Manual
Overload Protection Included No
Included Components Safety Latch Hooks
Headroom 13 3/4 in
Body Material Steel
Number of Load Chains 1
Lifting Hook Type Hook with Safety Latch
Chain Grade Grade 80
Includes Brake Brake Included
Lifting Hook Material Alloy Steel
For Outdoor Use Yes
Chain Finish Black Tempered, Zinc Plated

Description

Manual Chain Hoist, Chain Length 15 3/4 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 13 3/4 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 2,000 lb, Maximum Lifting Length 15 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 1/4 in, Body Material Steel, Body Width 5 1/8 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
