  13. Manual Chain Hoist, 4000 lb., Lift 20 ft.
Shop All Manual Chain Hoists
Dayton

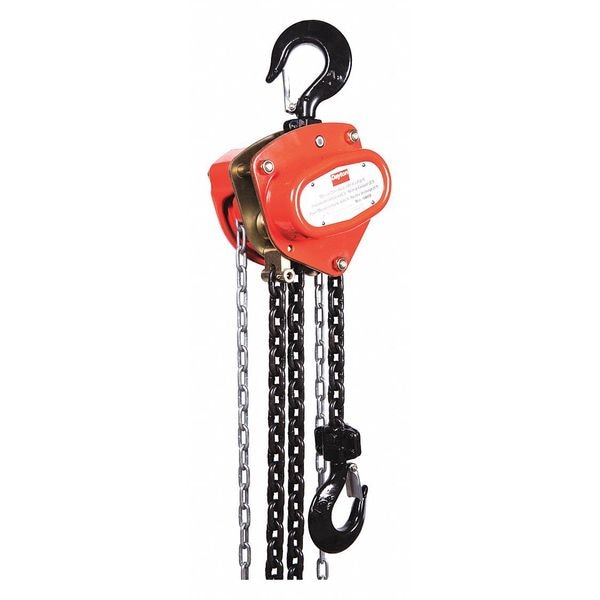

Manual Chain Hoist, 4000 lb., Lift 20 ft.

product price: $434.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 4,000 lb
  • Hoist Lift 20 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection No
  • Pull to Lift Rated Load 86 lb
See all product information

Product Information

Dimensions

Housing Length 7 13/32 in
Housing Width 7 1/4 in
Housing Depth 6 1/4 in
Manufacturers Warranty Length 1 yr
Body Width 7 1/4 in
Mfr. Warranty Length 1 yr
Minimum Retracted Length 17 1/8 in
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 1 1/8 in
Body Depth 6 3/16 in
Chain Length 20 15/16 ft

Details

Load Capacity 4,000 lb
Hoist Lift 20 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 86 lb
Min. Between Hooks 17 1/4 in
Hook Opening 1 17/64 in
Brake Weston Style, Double Disc Brake
Trolley Configuration Hook Mounted - No Trolley
Includes Safety Latch Hooks
Standards ANSI/ASME B30.16
Item Manual Chain Hoist
Color Red
Features Heat-Treated Alloy Steel Hooks, Rugged Die-Cast Aluminum
Includes Clutch Clutch Included
Number of Load Chains 1
Includes Brake Brake Included
Overload Protection Included No
Chain Finish Black Tempered, Zinc Plated
Lifting Hook Material Alloy Steel
Maximum Lifting Capacity 4,000 lb
Lifting Hook Type Hook with Safety Latch
Mount Type Hook Mounted - No Trolley
Chain Grade Grade 80
Included Components Safety Latch Hooks
Number of Reeves 1
Power Source Manual
For Outdoor Use Yes
Headroom 17 1/4 in
Brake Type Double Disc Brake, Weston Style
Operating Position Vertical
Body Material Steel
Chain Material Alloy Steel

Description

Manual Chain Hoist, Chain Length 20 15/16 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 17 1/4 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 4,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 3/16 in, Body Material Steel, Body Width 7 1/4 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel
