  13. Manual Chain Hoist, 4000 lb., Lift 20 ft.
Shop All Manual Chain Hoists
Dayton

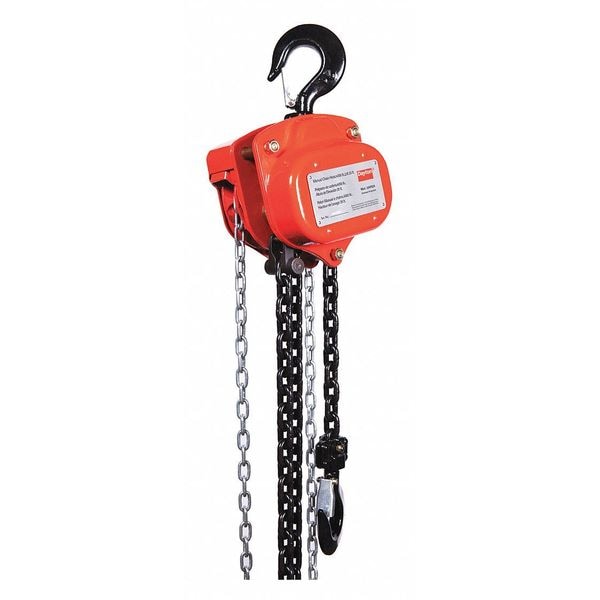

Manual Chain Hoist, 4000 lb., Lift 20 ft.

product price: $405.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 4,000 lb
  • Hoist Lift 20 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection Yes
  • Pull to Lift Rated Load 75 lb
See all product information

Product Information

Dimensions

Housing Length 7 63/64 in
Housing Width 8 in
Housing Depth 7 in
Manufacturers Warranty Length 1 yr
Lifting Hook Opening Width 1 1/4 in
Chain Length 21 ft
Maximum Lifting Length 20 ft
Body Width 8 in
Minimum Retracted Length 15 3/4 in
Mfr. Warranty Length 1 yr
Body Depth 7 1/16 in

Details

Load Capacity 4,000 lb
Hoist Lift 20 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 75 lb
Min. Between Hooks 15 3/4 in
Hook Opening 1 17/64 in
Item Manual Chain Hoist
Trolley Configuration Hook Mounted - No Trolley
Standards ANSI/ASME B30.16
Brake Weston Style, Double Disc Brake
Includes Safety Latch Hooks
Features Never Needs Resetting or Recalibrating, Over Load Limiter when Activated, Factory-Set Overload Protection will not let Hoist Operate, but will Allow Operators to Lower Loads (If Lifting) or Release Load (If Pulling), Overload Protection Resets Itself, Slip Clutch the Standard Slip Clutch Device helps Prevent the Hoist from being used to Lift Damaging Loads Beyond Rated Capacity
Color Red
For Outdoor Use Yes
Body Material Steel
Overload Protection Included Yes
Mount Type Hook Mounted - No Trolley
Brake Type Double Disc Brake, Weston Style
Headroom 15 3/4 in
Chain Finish Black Tempered, Zinc Plated
Included Components Safety Latch Hooks
Operating Position Vertical
Includes Clutch Clutch Included
Maximum Lifting Capacity 4,000 lb
Lifting Hook Type Hook with Safety Latch
Chain Material Alloy Steel
Chain Grade Grade 100
Includes Brake Brake Included
Power Source Manual
Number of Reeves 1
Body Finish Powder Coated
Number of Load Chains 1
Lifting Hook Material Alloy Steel

Description

Manual Chain Hoist, Chain Length 21 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 3/4 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 4,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 7 1/16 in, Body Material Steel, Body Width 8 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel, Color Red
