  11. Mill/Drill Machine, 20" Swing, Motor 5 HP
This item is Discontinued.

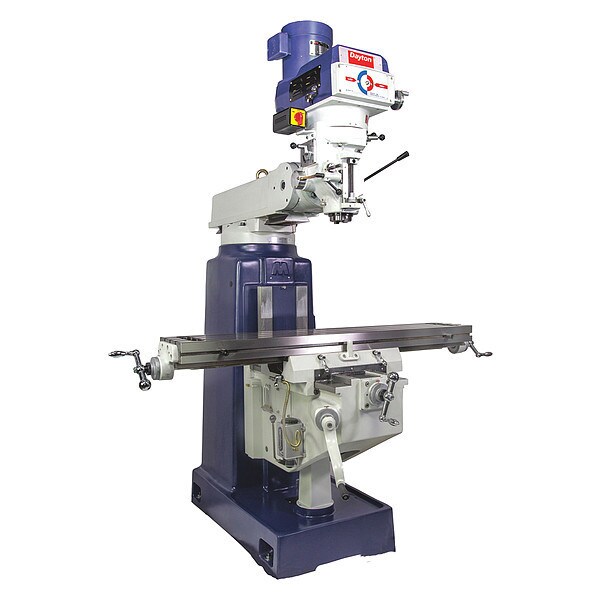

Dayton Mill/Drill Machine, 20" Swing, Motor 5 HP 484N91

Mill/Drill Machine, 20" Swing, Motor 5 HP (Discontinued)

  • Mfr # 484N91
  • Zoro # G6541600
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
484N91
Zoro #
G6541600
UPC #
00194484271862
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia.
3 15/16 in
Table Surface Height
37 1/2 in to 52 1/4 in
T-Slot Width
3/8 in
Table Work Surface - Width
54 in
Quill Diameter
3 15/16 in
Table Work Surface - Depth
10 in

Details

Swing
20 in
Voltage
460V
RPM
75 to 4200
Item
Mill Drill
Drilling Capacity Steel
1 in
Spindle Speed
75 to 4200 rpm
Face Milling Capacity
3/4 in
Lathe Capacity
10 in to 20 in
Motor HP
5
Phase
Three
Longitudinal Travel
35 in
Cross Travel
15 in
Amps
7.0
End Milling Capacity
6 in
Spindle to Table
3-9/64" a 19"
Motor Type
Induction
Graduations
0.001 in
Spindle Taper
NT40
Spindle Travel
5"
Table Work Surface
10 in x 54 in
Hz
60
Features
Ground Boxways, Hardened, Precision Spindle
Corded/Cordless
Corded
Spindle
NT40
T-Slots
3/8"
Includes
Coolant Tray
Head
Gear Drive
Operation
Manual
Speed
75 to 4200 rpm
Frequency
60 Hz
Motor Horsepower
5
Power Source
Corded
Spindle Speed - Minimum
75 RPM
Maximum Longitudinal Travel
35 in
Milling Head Drive
Gear Drive
Swing Measurement
20 in
Spindle Speed - Maximum
4,200 RPM
Maximum Spindle Travel
5 in
Head Material
Gear Drive
Lathe Capacity - Maximum
20 in
Lathe Capacity - Minimum
10 in
Maximum Cross Travel
15 in
Horsepower
5 hp
Includes Chuck
No Chuck
Motor Speed - Maximum
4,200 RPM

Description

Mill Drill, Phase Three, Swing 20 in
