  11. Motor, 1/4hp, D/D Blower

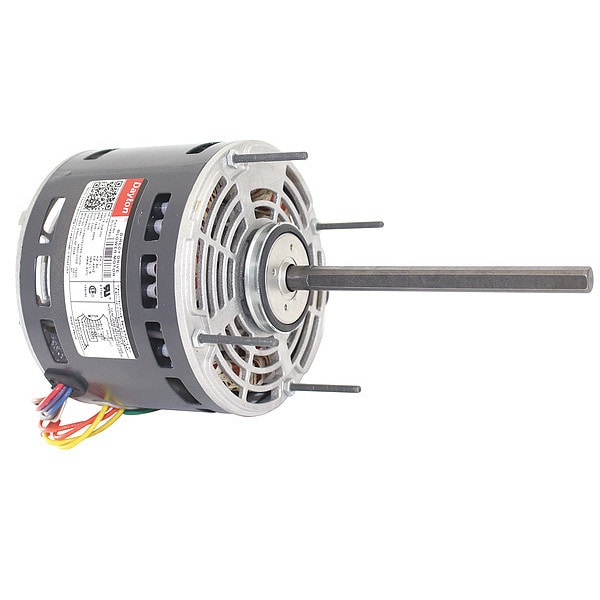

Dayton Motor, 1/4hp, D/D Blower 3LU74 - main

Motor, 1/4hp, D/D Blower

  • Mfr # 3LU74

  • Zoro # G0411591

product price: $275.99
/ea
Free Shipping & Returns

Key Features

Includes
2-1/2 in Ring Conversion Kit
Phase
Single
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Bolt Circle Dia.
5 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LU74
Zoro #
G0411591
UPC #
190735291061
Country of Origin
Multiple

Dimensions

Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Overall Length
11 7/16 in
Length Less Shaft
5 7/16 in
Shaft Length
6 in
Resilient Ring Dia.
2 1/4 in
Shaft Dia.
1/2 in

Details

Includes
2-1/2 in Ring Conversion Kit
Phase
Single
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Frame
48YZ
No. of Speeds
3
Motor Mounting Type
Ring/Stud
Duty
Continuous
Ring to Ring Center
5 in
HP
1/4
Motor Shaft Design
Double-Flat
Motor Mounting Position
All Angle
Motor Bearings
Ball
Motor Sub Application
Direct Drive
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
67.4 %
Motor Service Factor
1
Application
Blowers, Fans and Air Circulators
Ins. Class
B
Capacitor Required
2MDV4
Full Load Amps
1.75-1.75 A
Item
Direct Drive Blower Motor
Voltage
208-230V AC
RPM Range
1,601-1,700
Motor Design
Permanent Split Capacitor
Nameplate RPM
1,625
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Air-Over
Duty Cycle
Continuous
Mounting
Stud
Number of Speeds
3

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.75-1.75 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
