Shop DAYTON

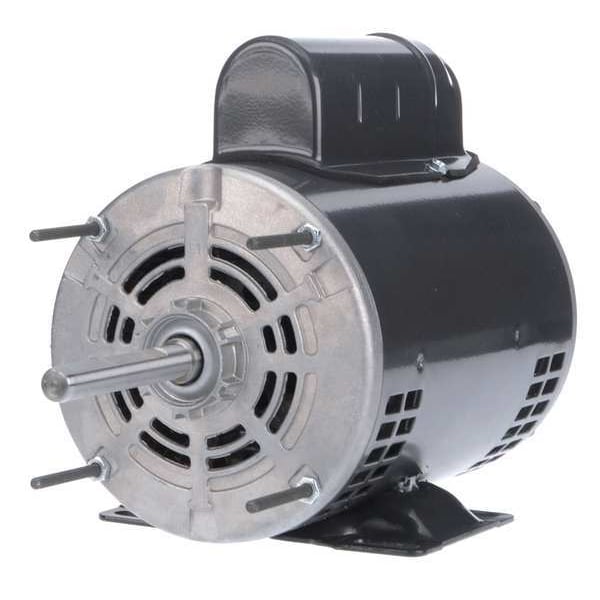

Motor, PSC, 3/4 HP, 1725,115/230V, 48Z, OAO

  • Mfr # 4YU29
  • Zoro # G2350512
product price:
$
350.99
/ea
Free Shipping & Returns

Key Features

Motor Bearings
Ball
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Phase
Single
Replacement For
4HZ45, 4HZ45G, 4HZ47
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU29
Zoro #
G2350512
UPC #
190735339152
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Stud Size
#10-32
Length Less Shaft
8 7/8 in
Frame Size
48Z
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#10-32
Overall Length
10 19/32 in
Wire Rope Length
10 19/32 in
Length
10 19/32 in

Details

Motor Bearings
Ball
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Phase
Single
Item
Fan and Blower Motor
Replacement For
4HZ45, 4HZ45G, 4HZ47
Motor Mounting Type
Through Bolt Mount
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Motor Shaft Design
Flat
Voltage
115V AC, 230V AC
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Mounting Position
All Angle
Mounting Stud Location
4/Shaft End
Motor Sub Application
Direct Drive
Motor Enclosure Design
Open Air-Over
Motor Design
Permanent Split Capacitor
Full Load Amps
7.0/3.5 A
RPM Range
1,701-1,800
Application
Fan/Blower
Duty
Continuous
Capacitor Required
Capacitor Included
Motor Application
HVAC/R
Motor Service Factor
1
HP
3/4
Mounting Stud Pattern
3 5/8 in
Nameplate RPM
1,725
Duty Cycle
Continuous
Mounting Holes
(4) #10-32
Usable @ 208V
Not Usable at 208V
Number of Shafts
1
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Includes
Capacitor
Conduit Box Position
F3
Mounting
Cradle Base
Number of Speeds
1
Mounting Position
All Angle
Bearing Type
Ball
Shaft Design
Flat
Full Load Current @ 60 Hz
7.0/3.5 A
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Sub Application
Ventilator
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Frequency
60 Hz
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 7.0/3.5 A Full Load Amps, 48Z Frame, 60 Hz Hz, Replacement For 4HZ45, 4HZ45G, 4HZ47, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
