Shop All Permanent Split Capacitor Blower Motors
Dayton

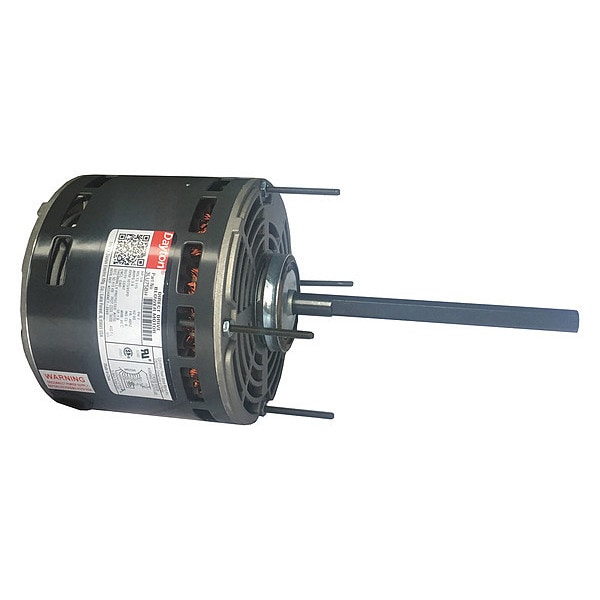

Motor, 1/4hp, D/D Blower

product price: $178.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Shaft Rotation CW/CCW
  • Duty Continuous
  • Includes Kit for 2.5 in Hub Ring Assembly
  • Motor Design Permanent Split Capacitor
  • Length Less Shaft 5 9/16 in
See all product information

Product Information

Dimensions

Length Less Shaft 5 9/16 in
Overall Length 11 9/16 in
Shaft Dia. 1/2 in
Shaft Length 6 in
Bolt Circle Dia. 5 1/8 in
Resilient Ring Dia. 2 1/4 in
Body Dia. 5 5/8 in

Details

Motor Shaft Rotation CW/CCW
Duty Continuous
Includes Kit for 2.5 in Hub Ring Assembly
Motor Design Permanent Split Capacitor
Application Blowers, Fans and Air Circulators
Motor Shaft Design Double-Flat
Full Load Amps 3.8 A
Motor Mounting Position All Angle
Hz 60 Hz
Nameplate RPM 1,075
Motor Bearings Sleeve
Max. Ambient Temp. 40 Degrees C
Capacitor Required 2MDV4
Phase Single
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Range 1,001-1,100
Ins. Class B
Motor Mounting Type Ring/Stud
No. of Speeds 4
Motor Sub Application Direct Drive
Voltage 115V AC
Frame 48YZ
HP 1/4
Motor Enclosure Design Open Air-Over
Motor Service Factor 1
Ring to Ring Center 5 3/16 in
Standards CSA Certification (258501), UL Recognition (E37403)
Mounting Stud Pattern 3 5/8 in x 3 5/8 in
Item Direct Drive Blower Motor
Motor Thermal Protection Auto
Motor Application HVAC/R
Duty Cycle Continuous
Number of Speeds 4
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 3.8 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle
