Shop DAYTON

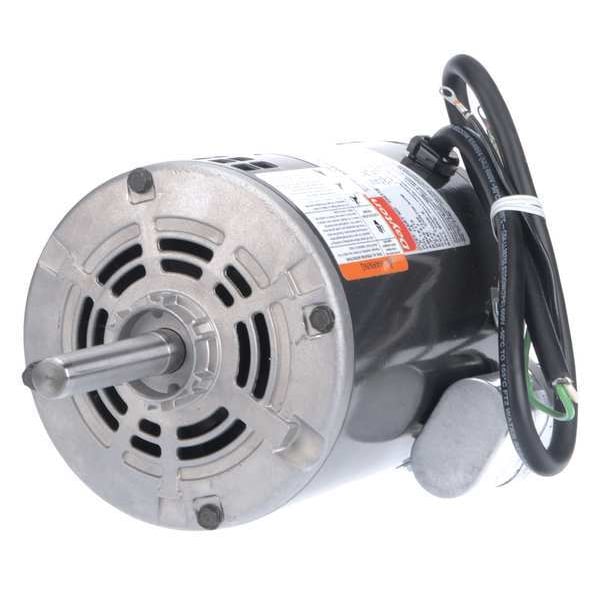

Motor, PSC, 1/3 HP, 1140 RPM, 115V, 56Z, OAO

  • Mfr # 5BE64

  • Zoro # G0807852

product price:  $512.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Type
Ring/Stud
Shaft Dia.
5/8 in
Application
Fan/Blower
Bolt Circle Dia.
5 1/8 in
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5BE64
Zoro #
G0807852
UPC #
190735342237
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 11/16 in
Length Less Shaft
8 9/16 in
Stud Size
#10-32
Shaft Length
2 3/4 in
Body Diameter
5.7 in
Overall Length
11 11/32 in
Bolt Circle Diameter
5 1/8 in
Frame Size
56Z
Shaft Diameter
5/8 in
Mounting Stud Thread Size
#10-32

Details

Motor Mounting Type
Ring/Stud
Application
Fan/Blower
Motor Bearings
Ball
Motor Mounting Position
All Angle
Item
Fan and Blower Motor
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Voltage
115V AC
Hz
60 Hz
Motor Shaft Design
Flat
HP
1/3
Ins. Class
B
Mounting Stud Pattern
3 5/8 in
Full Load Amps
4.7 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
No. of Speeds
1
Duty
Continuous
Motor Sub Application
Direct Drive
Mounting Stud Location
4/Opposite Shaft End
Standards
CSA Certified, UL Recognized
Nameplate RPM
1,140
RPM Range
1,101-1,200
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Capacitor Required
Capacitor Included
Motor Enclosure Design
Open Air-Over
Frame
56Z
Motor Shaft Rotation
CW/CCW
Phase
Single
Motor Thermal Protection
Auto
Number of Shafts
1
Stud Quantity
4
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #10-32
Includes
Capacitor
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F3
Mounting
Stud
Number of Speeds
1
Bearing Type
Ball
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Sub Application
Ventilator
Shaft Design
Flat
Frame Material
Steel
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
4.7 A
Frequency
60 Hz
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 4.7 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
