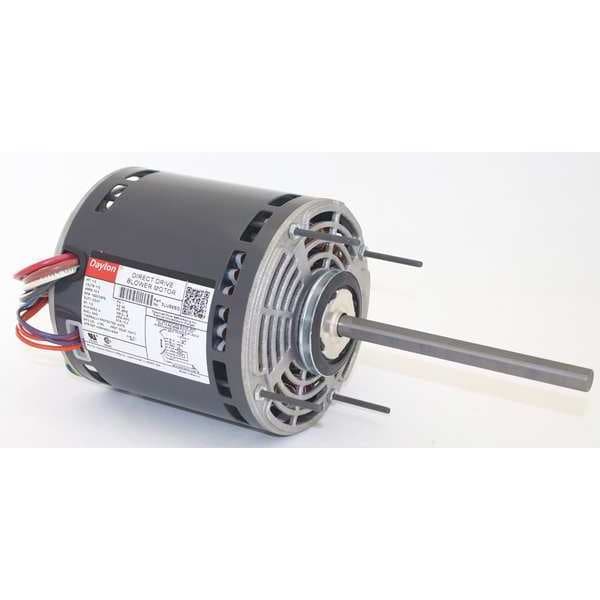

Motor, 1hp, D/D Blower

DAYTON| Zoro #: G2310621| Mfr #: 3LU89

$184.30 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 5-1/8"
Shaft Dia.: 1/2"
Application: Blowers, Fans and Air Circulators
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2310621 Mfr #: 3LU89
Bolt Circle Dia.: 5-1/8"Shaft Dia.: 1/2"
Application: Blowers, Fans and Air CirculatorsShaft Length: 6"
Motor Application: HVAC/RCapacitor Required: 2MDW2
Duty: ContinuousMotor Thermal Protection: Auto
Motor Shaft Rotation: CW/CCWRPM Range: 1601-1700
Ring to Ring Center: 6-3/4"Standards: UL Component Recognition (E37403), CSA Certified (258501)
Motor Mounting Type: Ring/StudLength Less Shaft: 7-7/16"
Body Dia.: 5-5/8"Item: Direct Drive Blower Motor
Motor Design: Permanent Split CapacitorPhase: 1
Resilient Ring Dia.: 2-1/4"Motor Enclosure Design: Open Air-Over
Overall Length: 12-7/8"Mounting Stud Pattern: 3-5/8" x 3-5/8"
Motor Service Factor: 1.00Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Mounting Position: All AngleFull Load Amps: 14.0
Hz: 60Motor Bearings: Ball
HP: 1No. of Speeds: 3
Ins. Class: BIncludes: Split Ring Conversion Kit
Motor Shaft Design: Double-FlatMax. Ambient Temp.: 40 Degrees C
Frame: 48YZMotor Sub Application: Direct Drive Fan/Blower
Voltage: 115Nameplate RPM: 1625
Nominal Efficiency: 69.50%Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1 HP, 1625 Nameplate RPM, Voltage 115, 14.0 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 7-7/16 In., Overall Length 13-7/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
