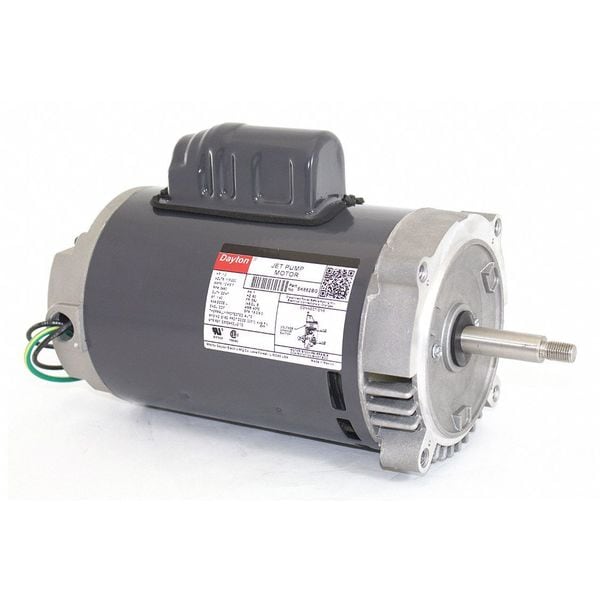

Dayton Motor, 1hp, Jet Pump 5K662 - main

Motor, 1hp, Jet Pump

  • Mfr # 5K662

  • Zoro # G3139211

product price:  $278.99
/ea
Free Shipping & Returns

Key Features

Voltage
115/230V AC
Frame
56J
HP
1
Motor Mounting Type
Face
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K662
Zoro #
G3139211
UPC #
190735345474
Country of Origin
Multiple

Dimensions

Body Dia.
5.6 in
Shaft Length
2 5/8 in
Shaft Dia.
5/8 in
Shaft Dia. (In.)
5/8
Height
12 7/16 in
Overall Length
12 7/16 in
Length Less Shaft
9 7/8 in
Body Diameter
5.6 in
Lead Length
8 1/2 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Frame Size
56J

Details

Voltage
115/230V AC
Frame
56J
HP
1
Motor Mounting Type
Face
Hz
60 Hz
Motor Design
Capacitor-Start
Nameplate RPM
3,450
Phase
Single
Includes
Dripcover Kit for Vertical Mounting, Water Slinger
Motor Sub Application
Jet Pump
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
68.7 %
Motor Thermal Protection
Auto
Motor Bearings
Ball
Standards
CSA Certified (258501), UL Recognized (E37403)
RPM Range
3,001-3,600
Motor Shaft Design
Threaded
Full Load Amps
13.4/6.7
Motor Enclosure Design
Open Dripproof
Motor Service Factor
1.4
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Rotation
CCWSE
Ins. Class
B
Motor Mounting Position
Horizontal, Vertical Shaft Down
Item
Jet Pump Motor
Motor Application
Pump
Finish
Gray
Shaft Type
Threaded
Conduit Box Location
Exterior
Insulation Class
B
Requires Overload Relay
No
Shaft Material
Stainless Steel
Number of Wires
11
Nameplate RPM @ 50 Hz
No Applicable
Frame Finish
Powder-Coated
NEMA Design Class
B
Number of Speeds
1
Service Factor Current
18.0 A / 9.0 A
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Stainless Steel
Manufacturers Warranty
1 yr
Weight
20 lb
Series
M
Duty Cycle
Continuous
Includes Diaphragm
Diaphragm Not Included
Starting Method
Across-the-Line
Frequency
60 Hz
Mounting Position
Horizontal
Full Load Current @ 60 Hz
13.4/6.7 A
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.4
Shaft Design
Threaded
Application
Pump
Bearing Type
Ball
Sub Application
Jet Pump

Description

Jet Pump Motor, Body Dia. 5.6 in, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position Not Applicable, Diaphragm Type Not Applicable, Duty Cycle Continuous, Finish Gray, Frame 56J, Hz 60 Hz, Full Load Amps 13.4/6.7, Height 12 7/16 in, HP 1, Includes Dripcover Kit for Vertical Mounting, Water Slinger, Ins. Class B, Inverter Rated Not Applicable, Lead Length 8 1/2 in, Length Less Shaft 9 7/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball
