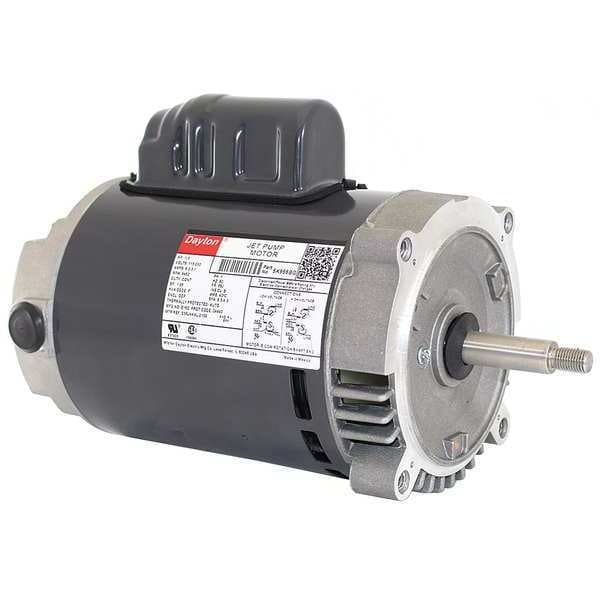

Dayton Motor, 1/3hp, Jet Pump 5K956BG - main

Motor, 1/3hp, Jet Pump

  • Mfr # 5K956BG

  • Zoro # G2208665

product price:  $280.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Service Factor
1.75
Full Load Amps
6.2/3.1
Motor Shaft Rotation
CCWSE
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K956BG
Zoro #
G2208665
UPC #
190735345573
Country of Origin
Multiple

Dimensions

Body Dia.
5.6 in
Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Shaft Dia. (In.)
5/8
Height
11 5/16 in
Length Less Shaft
8 3/4 in
Body Diameter
5.6 in
Lead Length
8 in
Frame Size
56J
Overall Length
11 5/16 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in

Details

Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Service Factor
1.75
Full Load Amps
6.2/3.1
Motor Shaft Rotation
CCWSE
Hz
60 Hz
Motor Shaft Design
Threaded
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Standards
CSA Certified (258501), UL Recognized (E37403)
Nameplate RPM
3,450
Nominal Efficiency
53.4 %
Ins. Class
B
Voltage
115/230V AC
Motor Sub Application
Jet Pump
Frame
56J
Phase
Single
Motor Bearings
Ball
HP
1/3
Motor Mounting Type
Face
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Item
Jet Pump Motor
Includes
Dripcover Kit for Vertical Mounting
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
Auto
Motor Design
Capacitor-Start
Finish
Gray
Shaft Type
Threaded
Nameplate Service Factor @ 60 Hz
1.75
Frame Finish
Powder-Coated
Service Factor Current
8.5 A / 4.3 A
Number of Speeds
1
Sub Application
Jet Pump
Shaft Design
Threaded
Conduit Box Location
Exterior
Weight
20 lb
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Series
M
Shaft Material
Stainless Steel
NEMA Design Class
B
Insulation Class
B
Application
Pump
Manufacturers Warranty
1 yr
Efficiency Rating
Standard Efficiency (IE1)
Nameplate RPM @ 50 Hz
No Applicable
Frequency
60 Hz
Mounting Position
Horizontal
Number of Wires
10
Starting Method
Across-the-Line
Product Type
Pump Motor
Frame Material
Stainless Steel
Ambient Temperature - Maximum
40 Degrees C
Includes Diaphragm
Diaphragm Not Included
Requires Overload Relay
No
Full Load Current @ 60 Hz
6.2/3.1 A
Duty Cycle
Continuous

Description

Jet Pump Motor, Body Dia. 5.6 in, Finish Gray, Frame 56J, Hz 60 Hz, Full Load Amps 6.2/3.1, HP 1/3, Includes Dripcover Kit for Vertical Mounting, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
