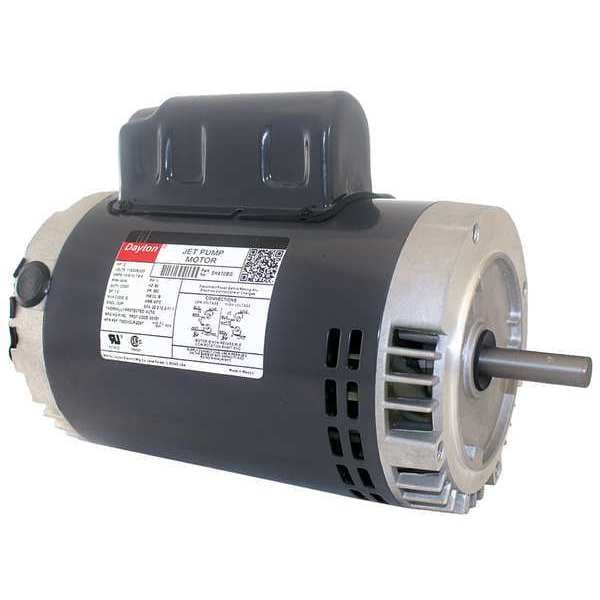

Dayton Motor, 2hp, Jet Pump 5K470 - main

Motor, 2hp, Jet Pump

  • Mfr # 5K470

  • Zoro # G1600173

product price:  $421.99
/ea
Free Shipping & Returns

Key Features

Frame
56C
Motor Thermal Protection
Auto
Motor Bearings
Ball
Nominal Efficiency
82.9 %
Includes
Dripcover Kit for Vertical Mounting, Shaft Key, Water Slinger
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K470
Zoro #
G1600173
UPC #
190735345160
Country of Origin
Multiple

Dimensions

Body Dia.
6.5 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Shaft Dia. (In.)
5/8
Height
12 3/8 in
Body Diameter
6.5 in
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
5/8 in
Overall Length
12 3/8 in
Lead Length
7 in
Length Less Shaft
10 5/16 in
Frame Size
56C

Details

Frame
56C
Motor Thermal Protection
Auto
Motor Bearings
Ball
Nominal Efficiency
82.9 %
Includes
Dripcover Kit for Vertical Mounting, Shaft Key, Water Slinger
Item
Jet Pump Motor
Motor Enclosure Design
Open Dripproof
Phase
Single
Motor Service Factor
1.2
HP
2
Motor Shaft Rotation
CCWSE
Nameplate RPM
3,450
Motor Application
Pump
Hz
60 Hz
Motor Sub Application
Jet Pump
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Shaft Design
Keyed
Ins. Class
B
Voltage
115/208-230V AC
Motor Mounting Type
Face
Max. Ambient Temp.
40 Degrees C
Full Load Amps
19.6/10.7-9.8
Motor Design
Capacitor-Start/Run
RPM Range
3,001-3,600
Standards
CSA Certified (258501), UL Recognized (E37403)
Finish
Gray
Shaft Type
Keyed
Nameplate RPM @ 50 Hz
No Applicable
Motor Enclosure Type
Open Drip Proof
Requires Overload Relay
No
Includes Diaphragm
Diaphragm Not Included
Nameplate Voltage @ 50 Hz
190/380V AC
Series
M
Frame Material
Stainless Steel
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Frame Finish
Powder-Coated
Number of Wires
12
Application
Pump
Full Load Current @ 60 Hz
19.6/10.7-9.8 A
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.2
NEMA Design Class
B
Weight
33 lb
Frequency
60 Hz
Insulation Class
B
Sub Application
Jet Pump
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Usable @ 208V
Usable at 208V
Bearing Type
Ball
Mounting Position
Horizontal
Starting Method
Across-the-Line
Conduit Box Location
Exterior
Number of Speeds
1
Shaft Material
Stainless Steel
Service Factor Current
22.2 A / 12.2-11.1 A

Description

Jet Pump Motor, Body Dia. 6.5 in, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position Not Applicable, Diaphragm Type Not Applicable, Duty Cycle Continuous, Finish Gray, Frame 56C, Hz 60 Hz, Full Load Amps 19.6/10.7-9.8, Height 12 3/8 in, HP 2, Includes Dripcover Kit for Vertical Mounting, Shaft Key, Water Slinger, Ins. Class B, Inverter Rated Not Applicable, Lead Length 7 in, Length Less Shaft 10 5/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump
