Century

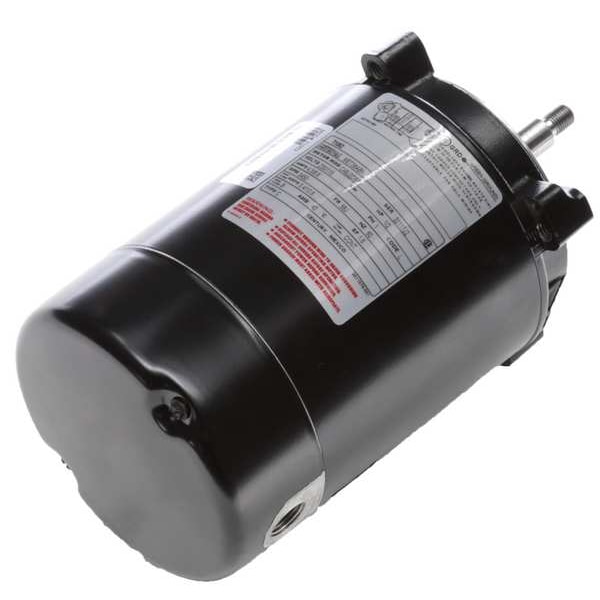

Pump Motor, Capacitor-Start Design

product price: $219.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height 5 5/8 in
  • Nameplate RPM 3,450
  • Weight 18 lb
  • Voltage 115/230V AC
  • Shaft Dia. 5/8 in
See all product information

Product Information

Dimensions

Height 5 5/8 in
Shaft Dia. 5/8 in
Length Less Shaft 8 3/4 in
Bolt Circle Dia. 5 7/8 in
Overall Length 11 3/16 in
Shaft Length 2 1/2 in
Body Dia. 5.6 in

Details

Item Jet Pump Motor
Nameplate RPM 3,450
Weight 18 lb
Voltage 115/230V AC
Motor Mounting Position Vertical
Motor Mounting Type Face
Motor Shaft Design Threaded
Standards CSA Certified
Usable @ 208V No
Motor Service Factor 1.6
HP 1/2
No. of Speeds 1
Motor Design Capacitor-Start
Ins. Class B
Duty Cycle Continuous
Motor Shaft Rotation CCWSE
Hz 60 Hz
Max. Ambient Temp. 104 Degrees F
Motor Frame Material Steel
Phase Single
Motor Enclosure Design Open Dripproof
Usable @ 200V No
Includes Sealed Switch
Frame 56J
Motor Bearings Ball
Motor Thermal Protection Auto
Full Load Amps 4.3/8.6
NEMA Design None
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application Pump
Motor Sub Application Jet Pump
RPM Range 3,001-3,600

Description

Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 5 7/8 in, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 4.3/8.6, Height 5 5/8 in, HP 1/2, Includes Sealed Switch, Ins. Class B, Length Less Shaft 8 3/4 in, Max. Ambient Temp. 104 Degrees F, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
