  11. Motor, 3/4hp, D/D Blower

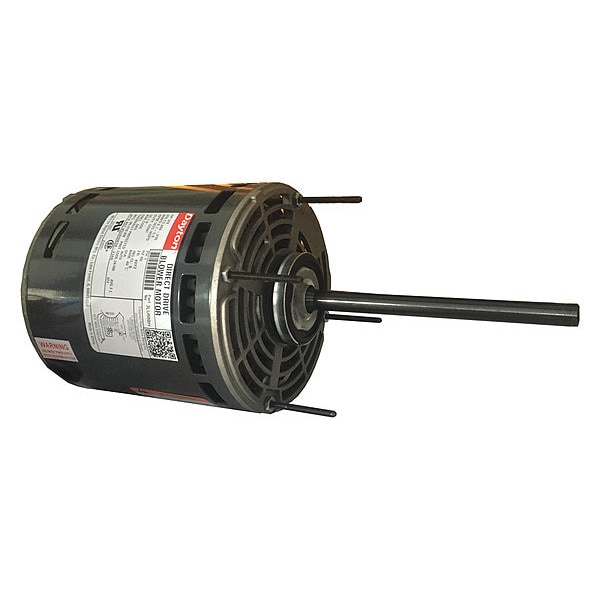

Dayton Motor, 3/4hp, D/D Blower 3LU88 - main

Motor, 3/4hp, D/D Blower

  • Mfr # 3LU88

  • Zoro # G3281327

product price: $275.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,075
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
HP
3/4
Motor Mounting Position
All Angle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LU88
Zoro #
G3281327
UPC #
190735291207
Country of Origin
China

Dimensions

Resilient Ring Dia.
2 1/4 in
Length Less Shaft
6 15/16 in
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
12 15/16 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Stud Size
8-32 NC 2A Thread x 1 5/8 in

Details

Nameplate RPM
1,075
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
HP
3/4
Motor Mounting Position
All Angle
No. of Speeds
4
Full Load Amps
6.1-5.8 A
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Item
Direct Drive Blower Motor
Motor Bearings
Sleeve
Motor Enclosure Design
Open Air-Over
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Application
Blowers, Fans and Air Circulators
Frame
48YZ
Motor Sub Application
Direct Drive
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Motor Mounting Type
Ring/Stud
RPM Range
1,001-1,100
Motor Design
Permanent Split Capacitor
Duty
Continuous
Standards
CSA Certification (258501), UL Component Recognition (E37403)
Voltage
208-230V AC
Motor Service Factor
1
Ring to Ring Center
6 1/2 in
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Capacitor Required
2MDV7
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Double-Flat
Ins. Class
B
Duty Cycle
Continuous
Mounting
Stud
Number of Speeds
4

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 6.1-5.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
