Leeson

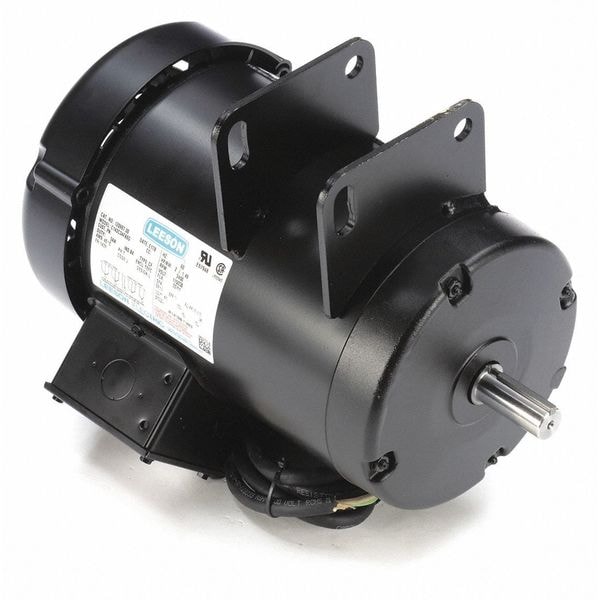

Saw Motor, 2 HP, 3450 RPM, 115/230V

Leeson Saw Motor, 2 HP, 3450 RPM, 115/230V 120997.00
Tap to zoom
Hover or click to zoom
$783.88
  • Item: Table Saw Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
See full product details
This item ships free.

Total: $783.88

Leeson #120997.00 Specifications

  • Item: Table Saw Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • HP: 2
  • Nameplate RPM: 3,450
  • Frame: 143Y
  • Voltage: 115/230V AC
  • Full Load Amps: 22.0/11.0
  • Motor Mounting Type: Face
  • RPM Range: 3,001-3,600
  • Motor Bearings: Ball
  • Motor Thermal Protection: None
  • Motor Application: Power Tool
  • Phase: Single
  • Hz: 60
  • Ambient Temperature: 40 Degrees C
  • Ins. Class: B
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Includes: 54 in Long Cord
  • Shaft Dia.: 3/4 in
  • Shaft Length: 1 3/4 in
  • Motor Shaft Rotation: CCWSE
  • Standards: CSA Certified, UL Recocgnized
  • Length Less Shaft: 11 1/8 in
  • Motor Service Factor: 1
  • Cord Length: 54 in
  • Weight: 45 lb
  • Usable @ 200V: No
  • Motor Mounting Position: Horizontal
  • Conduit Box Location: Exterior
  • Overall Length: 12 7/8 in
  • Extended Thru-Bolts: No
  • Motor Frame Material: Steel
  • Number of Shafts: 1
  • Conduit Box Position: F1
  • Nominal Efficiency: 70 %
  • Max. Ambient Temp.: 40 Degrees C
  • Usable @ 208V: No
  • No. of Speeds: 1
  • Motor Shaft Design: Keyed
  • Country of Origin (subject to change): United States

Description

Table Saw Motor, Single Phase, Motor Design Capacitor-Start, 2 HP, Nameplate RPM 3,450, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 22.0/11.0, 143Y Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
