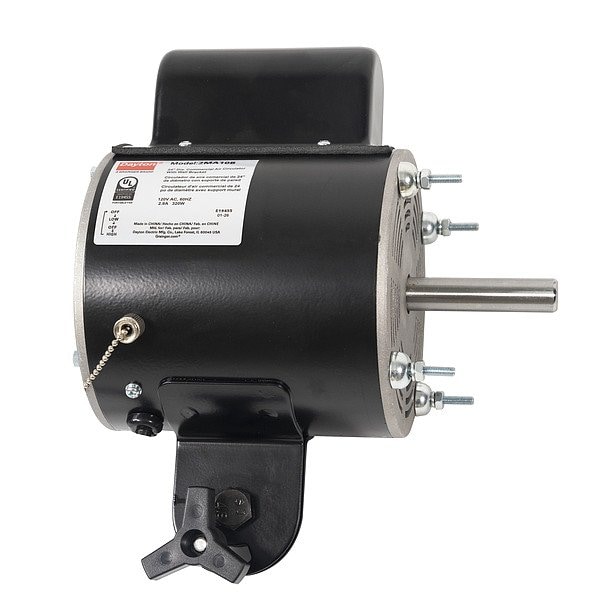

Dayton Motor Assembly, 1/4 hp VE2MA10MAG - main

Motor Assembly, 1/4 hp

  • Mfr # VE2MA10MAG

  • Zoro # G7915214

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
2MA10
Fits Brand
Dayton
For Use With
Grainger Item Number: 2MA10
Mounting Position
Horizontal
Length Less Shaft
5 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VE2MA10MAG
Zoro #
G7915214
UPC #
190735130582
Country of Origin
China

Dimensions

Length Less Shaft
5 7/8 in
Bolt Circle Diameter
130 mm
Shaft Length
219 mm
Body Diameter
144 mm
Frame Size
Non-Standard
Shaft Diameter
17 mm

Details

For Use With Mfr. Model Number
2MA10
Fits Brand
Dayton
Item
Motor Assembly
For Use With
Grainger Item Number: 2MA10
Mounting Position
Horizontal
Product Type
Definite Purpose HVAC Motor
Compatible Manufacturer Part Number
2MA10
Bearing Type
Ball
Drive Type
Direct Drive
Frame Material
Steel
Capacitor Required
Capacitor Included
Motor Design
Permanent Split Capacitor
Conduit Box Location
Interior
Usable @ 208V
Not Usable at 208V
Insulation Class
B
Compatible Brand
Dayton
Ambient Temperature - Maximum
40 Degrees C
Duty
Continuous
Manufacturers Warranty
1 yr
Phase
Single
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Usable @ 200V
Not Usable at 200V
Full Load Current @ 60 Hz
2.9 A

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, Voltage 120V AC, Full Load Amps 2.9 A, Non-Standard Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
