  11. Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO

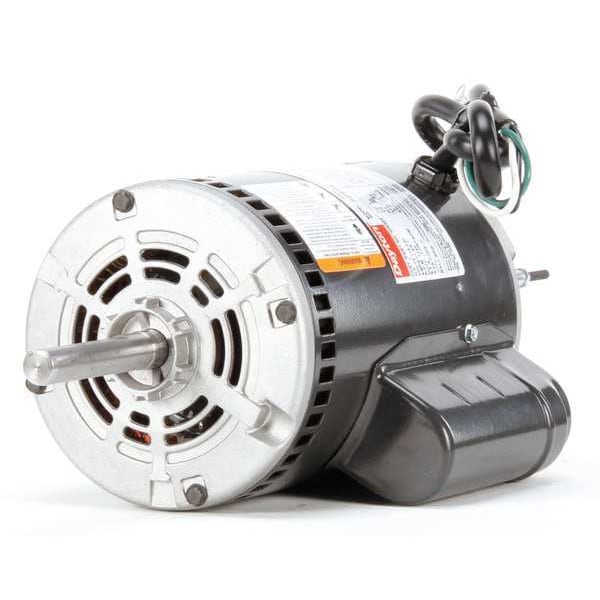

Dayton Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO 5BE68 - main

Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO

  • Mfr # 5BE68

  • Zoro # G3184325

product price: $698.99
/ea
Free Shipping & Returns

Key Features

Hz
60 Hz
Motor Service Factor
1
Motor Bearings
Ball
Ins. Class
B
Body Dia.
5 11/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5BE68
Zoro #
G3184325
UPC #
190735342251
Country of Origin
Mexico

Dimensions

Body Dia.
5 11/16 in
Shaft Length
3 in
Shaft Dia.
5/8 in
Length Less Shaft
9 9/16 in
Stud Size
#10-32
Bolt Circle Dia.
5 1/8 in

Details

Hz
60 Hz
Motor Service Factor
1
Motor Bearings
Ball
Ins. Class
B
Item
Direct Drive Blower Motor
Motor Mounting Type
Ring/Stud
Standards
CSA Certified, UL Recognized
Voltage
115/230V AC
Motor Shaft Rotation
CW/CCW
RPM Range
1,101-1,200
Motor Enclosure Design
Open Air-Over
Phase
Single
Motor Thermal Protection
Auto
Capacitor Required
Included
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
HP
1
Nameplate RPM
1,140
Motor Shaft Design
Flat
Duty
Continuous
Application
Blowers, Fans and Air Circulators
No. of Speeds
1
Mounting Stud Location
Opposite Shaft End
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Position
All Angle
Full Load Amps
11.4/5.7 A
Frame
48Z
Motor Sub Application
Direct Drive
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
No
Number of Shafts
1
Includes
Capacitor
Duty Cycle
Continuous
Mounting Holes
(4) #10-32
Stud Quantity
4
Usable @ 208V
No
Conduit Box Position
F3
Mounting
Stud
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, 11.4/5.7 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
