Shop FASCO

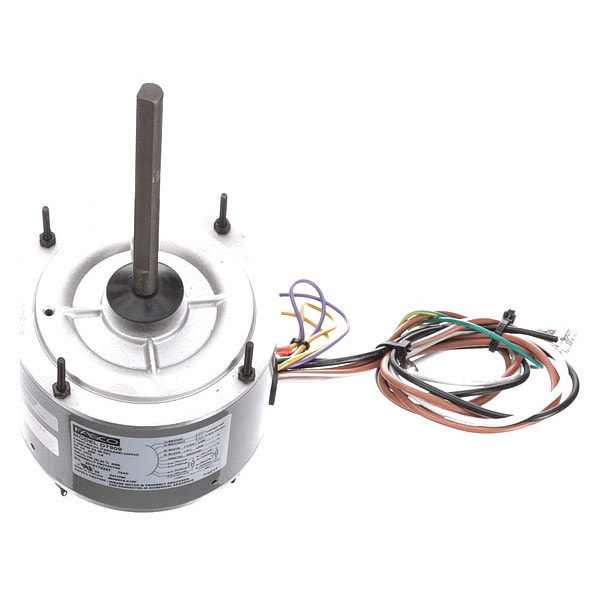

Condenser Fan Motor, 1/4 hp

  • Mfr # D7909
  • Zoro # G6422879
product price:
$
128.99
/ea
Free Shipping & Returns

Key Features

Application
Condenser Fan
No. of Speeds
1
Max. Ambient Temp.
60 Degrees C
Motor Bearings
Ball
Stud Quantity
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D7909
Zoro #
G6422879
UPC #
818508020280
Country of Origin
Thailand

Dimensions

Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Lead Length
27 in
Length Less Shaft
3 15/16 in
Overall Length
10 7/16 in
Bolt Circle Dia.
5 1/4 in
Stud Size
#8-32
Shaft Length
6 1/2 in
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/4 in
Wire Rope Length
10 7/16 in
Length
10 7/16 in

Details

Application
Condenser Fan
No. of Speeds
1
Max. Ambient Temp.
60 Degrees C
Motor Bearings
Ball
Stud Quantity
4
Duty
Continuous
Capacitor Required
Capacitor Not Included
Motor Shaft Design
Double-Flat
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Motor Sub Application
Condenser Fan
Nominal Efficiency
56 %
Motor Shaft Rotation
CW/CCW
Full Load Amps
1.6 A
RPM Range
1,001-1,100
Motor Enclosure Design
Totally Enclosed Air-Over
Hz
60 Hz
Features
Belly Band, Extended Studs Shaft End and Lead End, Thermally Protected
HP
1/4
Nameplate RPM
1,075
Frame
48
Mounting Stud Pattern
3 11/16 in x 3 11/16 in
Motor Thermal Protection
Auto
Item
Condenser Fan Motor
Motor Mounting Position
All Angle
Ins. Class
B
Phase
Single
Voltage
208V AC to 230V AC
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Application
HVAC/R
Motor Mounting Type
Stud
Motor Frame Material
Steel
Removable Base
Yes
Usable @ 208V
Not Usable at 208V
Weight
12 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Mounting Position
All Angle
Ambient Temperature - Maximum
60 Degrees C
Manufacturers Warranty
1 yr
Drive Type
Direct Drive
Wattage
190 W
Bearing Type
Ball
Frame Material
Steel
Product Type
Condenser Fan Motor
Insulation Class
B
Sub Application
Condenser Fan
Shaft Design
Double Flat
Full Load Current @ 60 Hz
1.6 A
Includes
Removable Base
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.6 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
