  11. Motor, PSC, 1/2 HP, 1140,115/230V, 56Z, OAO
Dayton

Motor, PSC, 1/2 HP, 1140,115/230V, 56Z, OAO

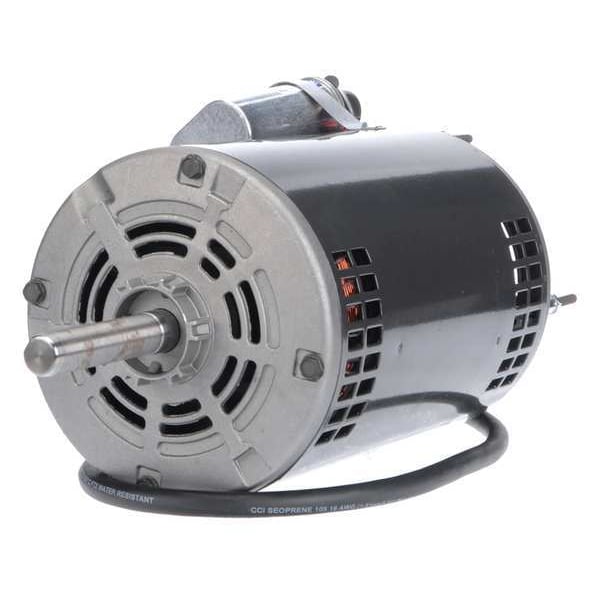

Dayton Motor, PSC, 1/2 HP, 1140,115/230V, 56Z, OAO 5BE66
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$560.47
  • Ins. Class: B
  • Full Load Amps: 5.4/2.7
  • Hz: 60 Hz
See full product details
This item ships free.
Total: $560.47

Dayton #5BE66 Specifications

  • Ins. Class: B
  • Full Load Amps: 5.4/2.7
  • Hz: 60 Hz
  • Motor Bearings: Ball
  • Motor Enclosure Design: Open Air-Over
  • Mounting Stud Location: Opposite Shaft End
  • Capacitor Required: Included
  • Bolt Circle Dia.: 5 1/8 in
  • Body Dia.: 5 11/16 in
  • Length Less Shaft: 9 13/16 in
  • Frame: 56Z
  • Voltage: 115/230V AC
  • No. of Speeds: 1
  • Motor Service Factor: 1
  • Motor Mounting Position: All Angle
  • Max. Ambient Temp.: 40 Degrees C
  • Stud Size: #10-32
  • RPM Range: 1,101-1,200
  • Motor Shaft Rotation: CW/CCW
  • Phase: Single
  • Motor Design: Permanent Split Capacitor
  • Duty: Continuous
  • Application: Blowers, Fans and Air Circulators
  • Shaft Length: 2 3/4 in
  • Shaft Dia.: 5/8 in
  • Nameplate RPM: 1,140
  • HP: 1/2
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Motor Shaft Design: Flat
  • Motor Thermal Protection: Auto
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Motor Sub Application: Direct Drive Fan/Blower
  • Motor Application: HVAC/R
  • Item: Direct Drive Blower Motor
  • Standards: CSA Certified, UL Recognized
  • Motor Mounting Type: Stud
  • Number of Shafts: 1
  • Stud Quantity: 4
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Mounting Holes: (4) #10-32
  • Includes: Capacitor
  • Duty Cycle: Continuous
  • Conduit Box Position: F3
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7, 56Z Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
