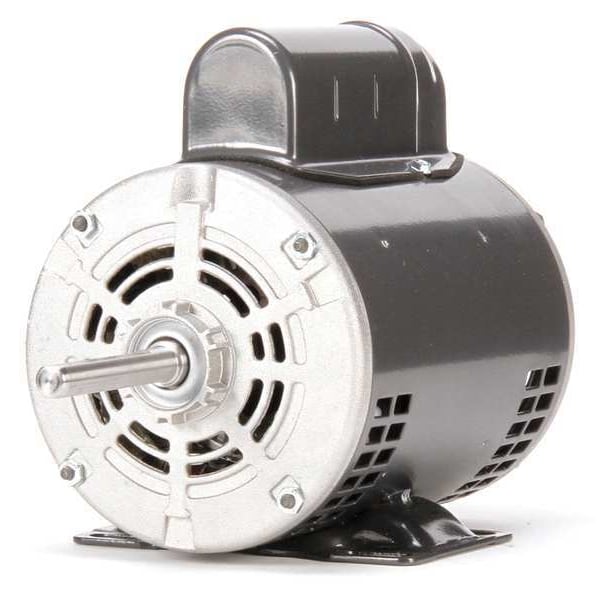

Motor, PSC, 1/2 HP, 860,115/230V, 48Z, OAO

  • Mfr # 4YU22
  • Zoro # G0777515
product price:
$
605.99
/ea
Free Shipping & Returns

Key Features

Max. Ambient Temp.
40 Degrees C
HP
1/2
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
Rigid Base
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU22
Zoro #
G0777515
UPC #
190735339091
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 in
Length Less Shaft
8 9/16 in
Body Dia.
5 5/8 in
Frame Size
48Z
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Overall Length
11 5/8 in
Wire Rope Length
11 5/8 in
Length
11 5/8 in

Details

Max. Ambient Temp.
40 Degrees C
HP
1/2
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
Rigid Base
No. of Speeds
1
Full Load Amps
6.0/3.0 A
Motor Bearings
Ball
Motor Service Factor
1
Frame
48Z
Capacitor Required
Capacitor Included
Voltage
115V AC, 230V AC
Motor Thermal Protection
Auto
RPM Range
0-1,000
Includes
65 MFD 240VAC Capacitor
Standards
CSA Certified, UL Recognized
Nameplate RPM
860
Motor Design
Permanent Split Capacitor
Motor Sub Application
Direct Drive
Ins. Class
B
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Shaft Design
Flat
Phase
Single
Duty
Continuous
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Hz
60 Hz
Application
Fan/Blower
Replacement For
4HZ56, 4HZ58
Item
Fan and Blower Motor
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Stud Quantity
4
Duty Cycle
Continuous
Conduit Box Position
F3
Number of Speeds
1
Mounting
Rigid Base
Shaft Design
Flat
Mounting Position
All Angle
Frame Material
Steel
Full Load Current @ 60 Hz
6.0/3.0 A
Bearing Type
Ball
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Sub Application
Ventilator
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 860 RPM, No. of Speeds 1, Voltage 115/230V AC, 6.0/3.0 A Full Load Amps, 48Z Frame, 60 Hz Hz, Replacement For 4HZ56, 4HZ58, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
