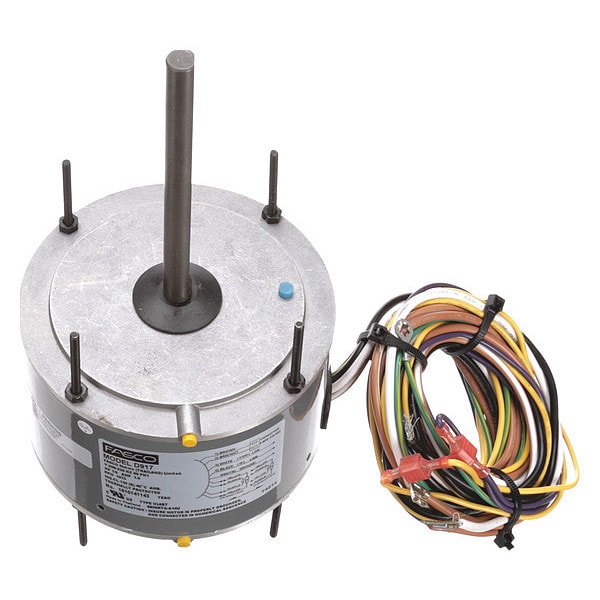

Condenser Fan Motor, 1/6 hp

  • Mfr # D917
  • Zoro # G6422845
product price:
$
141.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA Certified, UL Recognized
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Hz
60 Hz
Ins. Class
B
Voltage
208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D917
Zoro #
G6422845
UPC #
818508020570
Country of Origin
Thailand

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
6 1/2 in
Lead Length
55 in
Overall Length
11 5/16 in
Length Less Shaft
4 13/16 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/4 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Frame Size
48
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/4 in
Wire Rope Length
11 5/16 in
Length
11 5/16 in

Details

Standards
CSA Certified, UL Recognized
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Hz
60 Hz
Ins. Class
B
Voltage
208V AC to 230V AC
Duty
Continuous
RPM Range
1,001-1,100
Motor Thermal Protection
Auto
Motor Application
HVAC/R
HP
1/6
Frame
48
Mounting Stud Pattern
3 11/16 in x 3 11/16 in
Motor Design
Permanent Split Capacitor
No. of Speeds
1
Motor Mounting Type
Stud
Stud Quantity
4
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,075
Motor Shaft Design
Double-Flat
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
61 %
Phase
Single
Capacitor Required
Capacitor Included
Motor Sub Application
Condenser Fan
Motor Enclosure Design
Totally Enclosed Air-Over
Item
Condenser Fan Motor
Motor Bearings
Sleeve
Application
Condenser Fan
Features
Belly Band, Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Thermally Protected
Full Load Amps
1.0 A
Motor Mounting Position
All Angle
Usable @ 208V
Usable at 208V
Output Watts
130 W
Duty Cycle
Continuous
Removable Base
Yes
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
11 lb
Manufacturers Warranty
1 yr
Insulation Class
B
Wattage
130 W
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Double Flat
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Sub Application
Condenser Fan
Bearing Type
Sleeve
Full Load Current @ 60 Hz
1.0 A
Mounting Position
All Angle
Number of Speeds
1
Product Type
Condenser Fan Motor
Includes
Removable Base
Frequency
60 Hz

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.0 A Full Load Amps, 48 Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
