Shop DAYTON

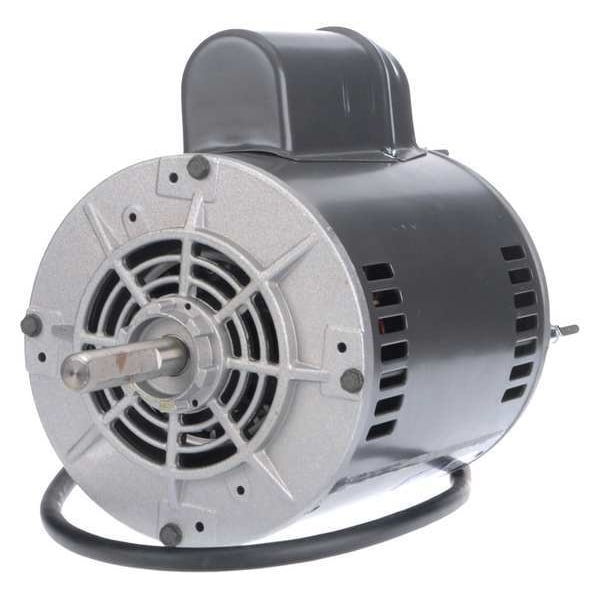

Mtr, Cap St, 1 HP, 1725, 115/208-230, 56Z, ODP

  • Mfr # 5BE58

  • Zoro # G0680985

product price:  $606.99
/ea
Free Shipping & Returns

Key Features

Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Capacitor-Start
Nameplate RPM
1,725
Shaft Length
2 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5BE58
Zoro #
G0680985
UPC #
190735342206
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Body Dia.
6 1/2 in
Length Less Shaft
9 3/8 in
Stud Size
#10-32
Bolt Circle Dia.
6 1/16 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56Z
Overall Length
12 3/8 in
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
6 1/16 in
Body Diameter
6.5 in
Wire Rope Length
12 3/8 in

Details

Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Capacitor-Start
Nameplate RPM
1,725
Motor Sub Application
Direct Drive
Motor Mounting Position
All Angle
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Design
Flat
RPM Range
1,701-1,800
Motor Shaft Rotation
CW/CCW
Frame
56Z
Item
Fan and Blower Motor
Motor Thermal Protection
Auto
Mounting Stud Pattern
4 9/32 in
Hz
60 Hz
Mounting Stud Location
4/Opposite Shaft End
Application
Fan/Blower
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
No. of Speeds
1
Full Load Amps
12.8/6.4-6.4 A
Phase
Single
Motor Enclosure Design
Open Dripproof
HP
1
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Ring/Stud
Capacitor Required
Capacitor Included
Duty
Continuous
Ins. Class
B
Voltage
115/208-230V AC
Number of Shafts
1
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Includes
Capacitor
Mounting Holes
(4) #10-32
Stud Quantity
4
Conduit Box Position
F3
Number of Speeds
1
Mounting
Stud
Drive Type
Belt Drive
Insulation Class
B
Bearing Type
Ball
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Sub Application
General Purpose
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
12.8/6.4-6.4 A
Shaft Design
Flat
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 12.8/6.4-6.4 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
