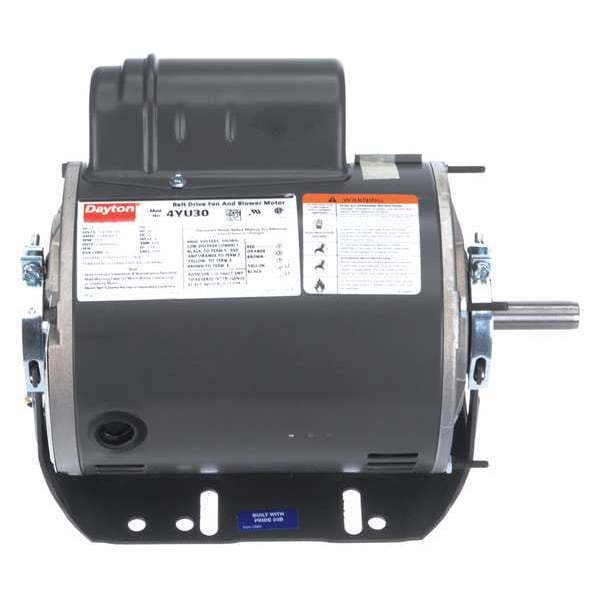

Mtr, Cap St, 1 HP, 1725, 115/208-230V, 56, ODP

  • Mfr # 4YU30

  • Zoro # G3441374

product price:
$
445.99
/ea
Free Shipping & Returns

Key Features

RPM Range
1,701-1,800
Length Less Shaft
9 1/2 in
Ins. Class
B
Resilient Ring Dia.
2 1/2 in
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU30
Zoro #
G3441374
UPC #
190735339169
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/2 in
Resilient Ring Dia.
2 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6 1/2 in
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/2 in
Frame Size
56
Body Diameter
6.5 in

Details

RPM Range
1,701-1,800
Ins. Class
B
Item
Belt Drive Motor
Motor Bearings
Ball
Frame Material
Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Mounting Position
All Angle
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
1
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Duty
Continuous
Nameplate RPM
1,725
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CW/CCW
Voltage
115/208-230V AC
HP
1
Full Load Amps
12.8/6.4-6.4 A
Frame
56
Standards
CSA Certified, UL Recognized
Phase
Single
Motor Mounting Type
Cradle Base
Ring to Ring Center
9 1/8 in
Motor Application
HVAC/R
Motor Service Factor
1.15
Motor Frame Material
Steel
Mounting Stud Pattern
4-1/4 in x 4-1/4 in
Duty Cycle
Continuous
Motor Shaft Design
Keyed
Usable @ 208V
Yes
Includes
Capacitor
Usable @ 200V
No
Capacitor Required
Capacitor Included
Drive Type
Belt Drive
Number of Speeds
1
Application
Fan/Blower
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
All Angle
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
12.8/6.4-6.4 A
Frequency
60 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 12.8/6.4-6.4 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
