  11. Mtrzd Damper, For Fan Dia. 48", 100-240V

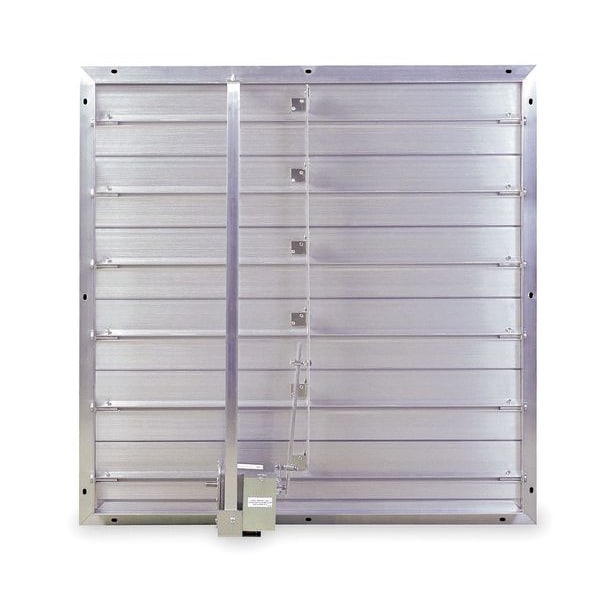

Dayton Mtrzd Damper, For Fan Dia. 48", 100-240V 3C132 - main

Mtrzd Damper, For Fan Dia. 48", 100-240V

  • Mfr # 3C132

  • Zoro # G0548003

product price: $626.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

For Fan Dia.
48 in
Voltage
100 to 240
Overall Square
51 in
Sq. Opening Required
49 in
Free Area
14.8 sq ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3C132
Zoro #
G0548003
UPC #
190735280706
Country of Origin
United States

Dimensions

For Fan Dia.
48 in
Flange Width
1 1/2 in
Overall Width
51 in
Overall Length
13 1/4 in
Overall Height
51 in
Rough Opening Diameter
49 in
Frame Material Thickness
0.1 in
Rough Opening Length
49 in
Overall Diameter
51 in
Rough Opening Width
49 in
Blade Material Thickness
0.1 in

Details

Item
51"H-W 13.3"L Squ Alu Mtrzd Cntrl Dampr
Voltage
100 to 240
Overall Square
51 in
Sq. Opening Required
49 in
Free Area
14.8 sq ft
Frame Less Flange
48 sq in
Motor Bracket Extension
10 1/4 in
Hz
50/60
Material
Extruded Aluminum
Features
Frame Thickness is 0.125 in, Blade Thickness is 0.080 in
Operation
Power Open, Spring Return
Mounting Position
Horizontal; Vertical
Number of Panels
1
For Use With
Intake or Exhaust Applications
Standards
NEC; OSHA
Jamb Seal Material
Stainless Steel
Phase
1
Series
AMD-SP
Frame Material
Aluminum
Maximum Air Velocity
3500 fpm
Damper Application
Motorized
Blade Orientation
Parallel Blades
Damper Type
Dynamic
Axle Material
Aluminum
Frequency
50/60 Hz
Maximum Temperature Rating
122 Degrees F
Pressure Drop @ 1000 fpm (AMCA 5.2)
0.15 in wg
Rough Opening Shape
Square
Includes Motor
Yes
Closure Velocity Rating
3,500 fpm
Closure Pressure Rating
4 in wc
Blade Type
Flat Blade
Nameplate Voltage
100/240V AC
Switch Action
Normally Open
Damper Finish
Mill Finish
Counterbalanced
No
For Duct Shape
Square
Blade Material
Aluminum
Full Load Current
3 A
Maximum Air Pressure
4 in wg
Airflow Direction
Horizontal; Vertical
Bushing Material
Nylon
Flange Type
Reversed Flange

Description

51 In.H-W 13.3 In.L Squ Alu Mtrzd Cntrl Dampr, For Nominal Duct Diameter Not Applicable, Damper Application Motorized, Number of Panels 1, Overall Height 51 in, Overall Length 13 1/4 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 51 in, Frame Material Thickness 0.1 in, Blade Material Aluminum, Maximum Air Pressure 4 in wg, Overall Diameter 51 in, Rough Opening Length 49 in, Rough Opening Width 49 in, Damper Type Dynamic, Maximum Air Velocity 3500 fpm
