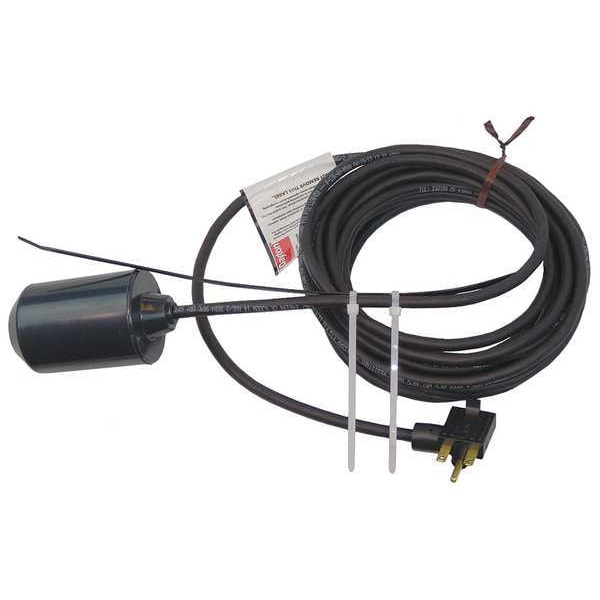

Dayton NO Mechanical Float Switch 230VAC 6PNV2 - main

NO Mechanical Float Switch 230VAC

  • Mfr # 6PNV2

  • Zoro # G4268792

product price: $94.29
/ea
Free Shipping & Returns

Key Features

Voltage
230VAC
Amps
13 A
HP @ 1 Phase - 230V
2
Max. Liquid Temp.
140 Degrees F
Connection
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6PNV2
Zoro #
G4268792
UPC #
190735369807
Country of Origin
Multiple

Dimensions

Float Length (In.)
4-5/8
Float Switch Cord Length
30 ft.
Float Dia. (In.)
2-5/8
Tether Length Min.-Max.
3" to 18"
Float Length
4 5/8 in
Float Dia.
2 5/8 in
Minimum Tether Length
3 in
Maximum Tether Length
18 in
Cord Length
30 ft
Tether Length - Maximum
18 in
Tether Length - Minimum
3 in
Float Diameter
2 5/8 in

Details

Voltage
230VAC
Item
Float Switch
Amps
13 A
HP @ 1 Phase - 230V
2
Max. Liquid Temp.
140 Degrees F
Connection
Plug
Specific Gravity
0.6
Includes
CSA, UL
Float Switch Contact Form
Normally Open
Float Material
ABS
Teather/Solid State
Tether
For Use With
Liquid
Max. Water Level Adjustment
28
Float Switch Type
Tether
Wire Gauge
16
Mounting Bracket Material
Plastic
VA Rating
460
Type
Tether
Float Switch On Point
45 Degrees Above Horizontal
Agency Compliance
CSA, UL
Min. Water Level Adjustment
7
Float Switch Off Point
45 Degrees Below Horizontal
Pumping Range Min./Max.
7 to 28
Electrical Connection - Pumps
Piggyback
Float Switch Float Material
ABS
Electrical Connection (Pumps)
Piggyback
Contact Form
Normally Open
Standards
CSA, UL Listed
Electrical Connection
Piggy-Back Plug
Rated Voltage
230V AC
Switch Actuation
Mechanically Activated
Off Point
45 Degrees Below Horizontal
Contact Default
Normally Open
On Point
45 Degrees Above Horizontal
Running Current - Maximum
13 A
Starting Current - Maximum
72 A
Switch Duty
Pump Duty
Counterweight Type
No Counterweight
Liquid Temperature - Maximum
140 Degrees F

Description

Float Switch
